Features

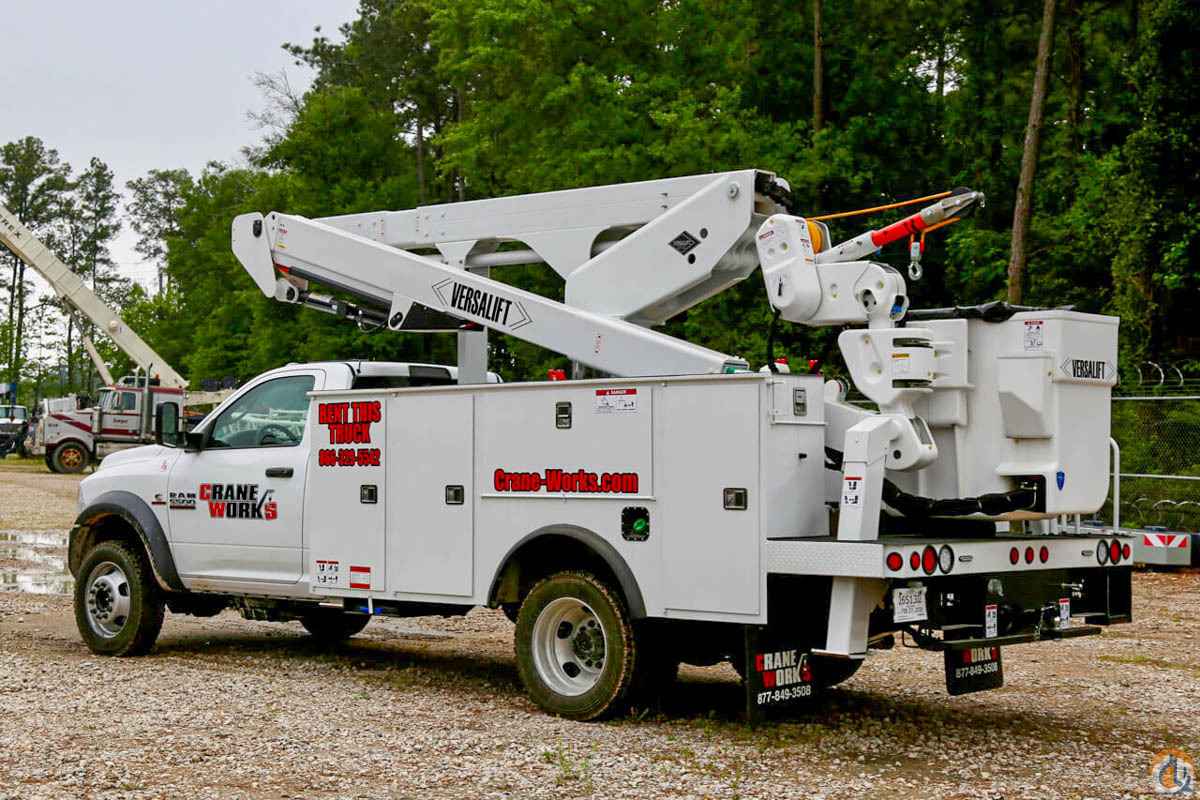

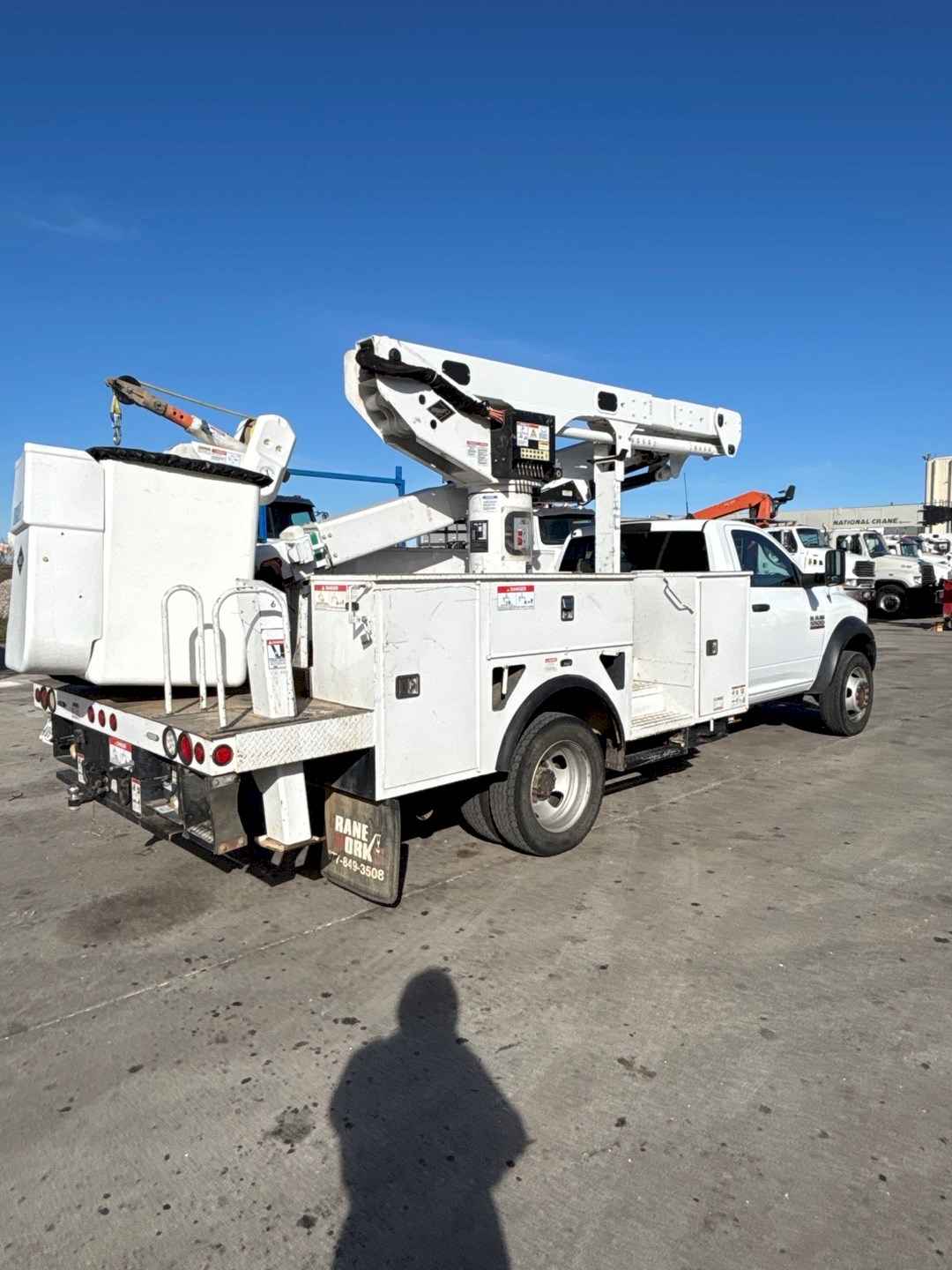

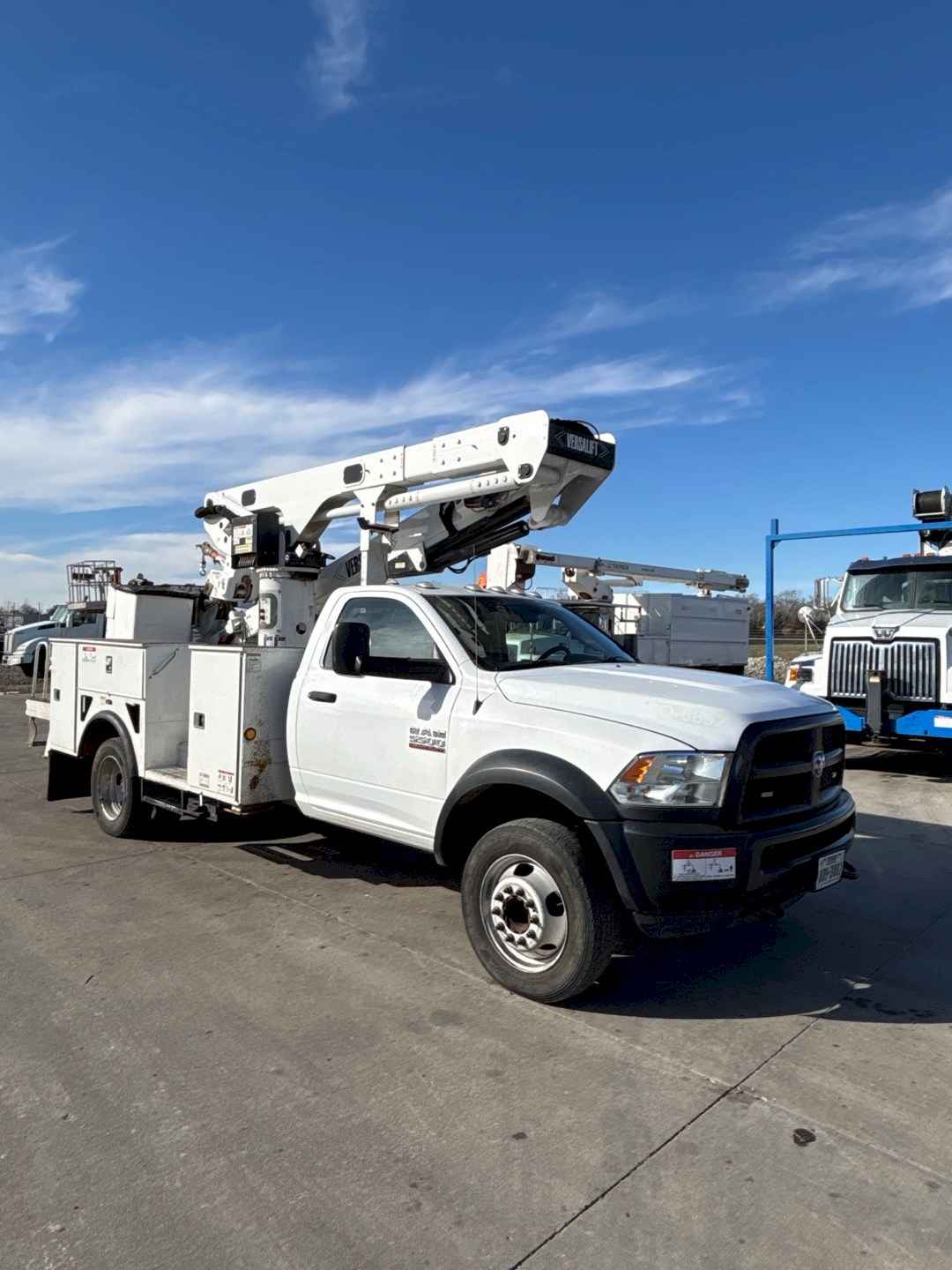

PRODUCT OVERVIEW

• Working Height 51.83 ft (15.54 m)


• Height to Bottom of Platform 46.83 ft (14.02 m)


• Horizontal Reach 30.75 ft (9.14 m)


• Stowed Travel Height 11 ft (3.35 m)


• Platform Capacity 500 lbs (226.8 kg)


• Insulated or Non-insulated: Insulated


• Material Handling: No

SPECIFICATIONS

HYDRAULIC SYSTEM

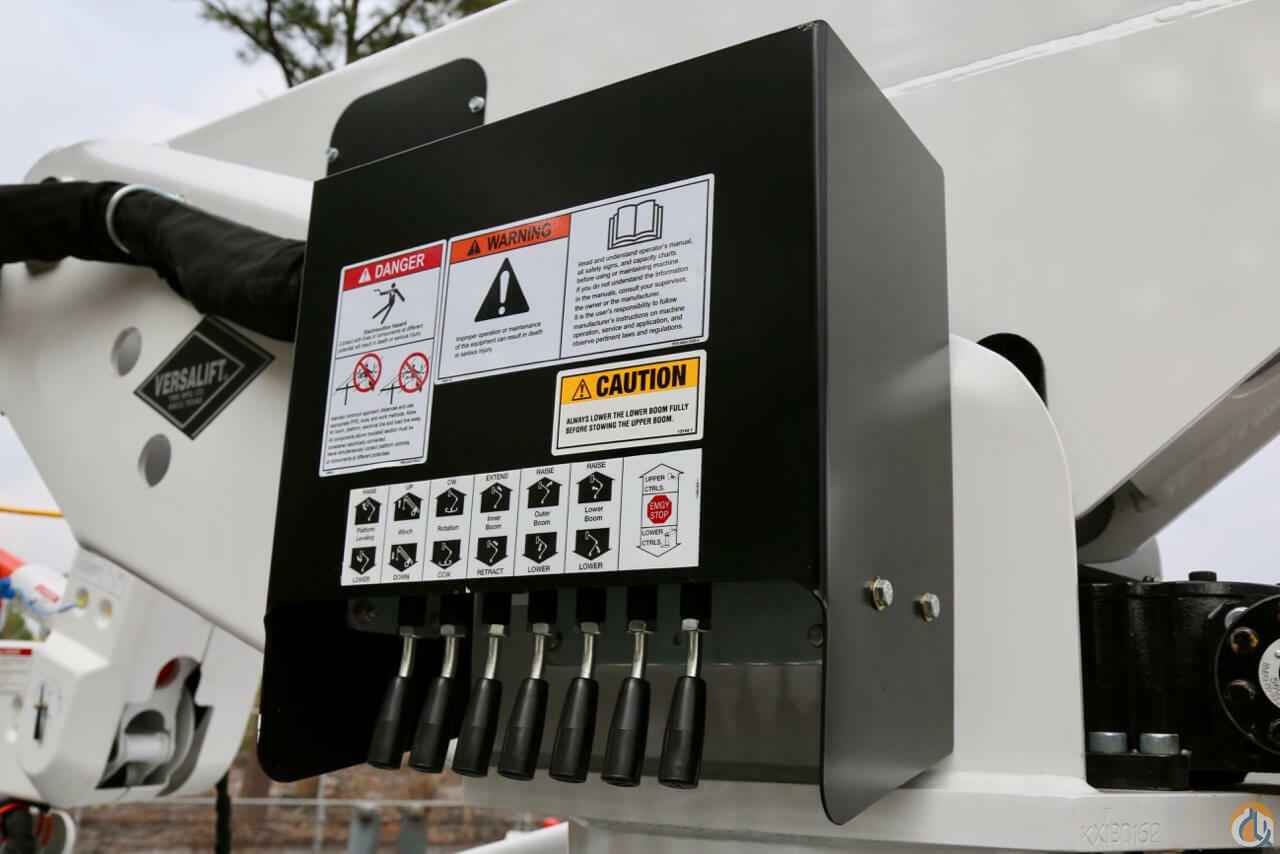

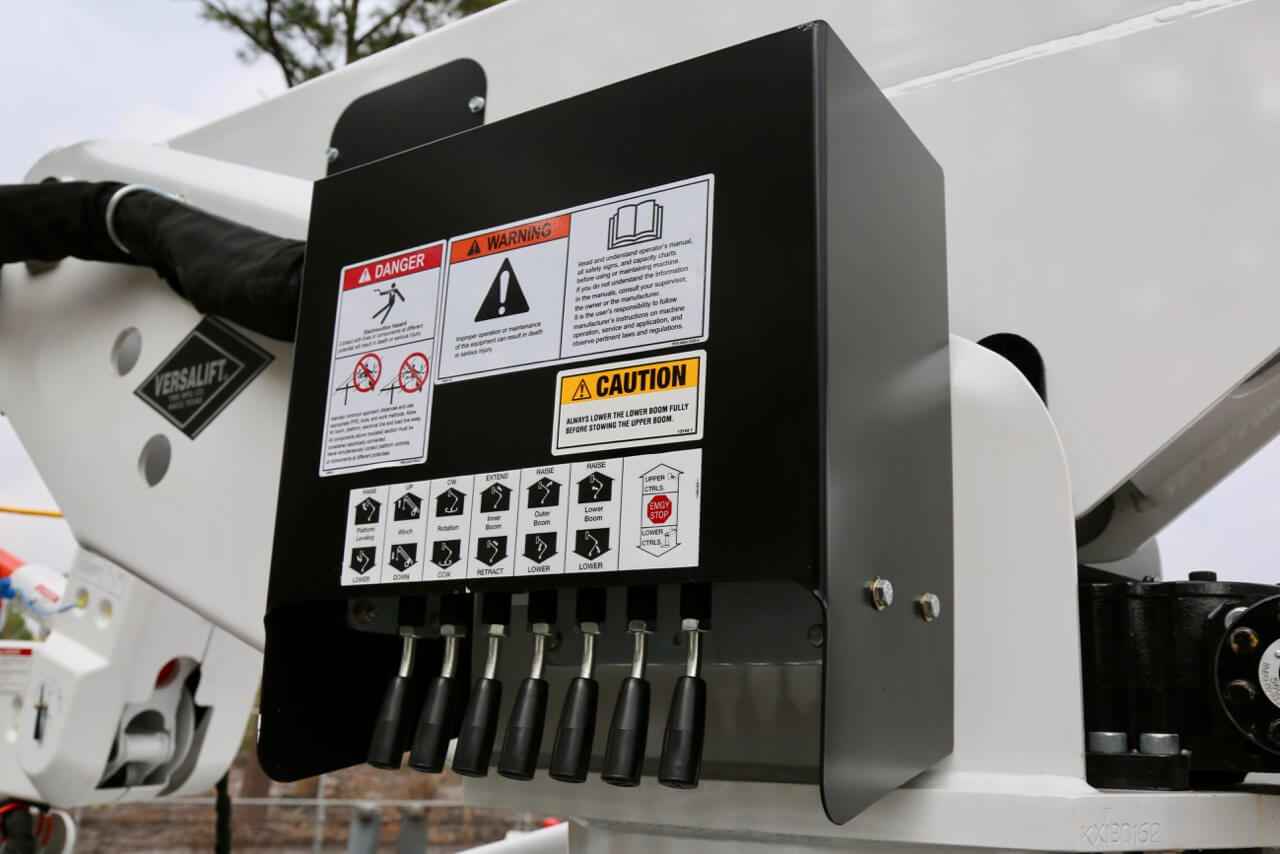

• Hydraulic Controls N/A


• Operating Pressure 3000 psi (210.92 kg/cm²)


• Flow Rate 6 gpm (22.71 lpm)


• Filtration10 micron return | 100 mesh suction


• System Type: Open Center


• Power Source: PTO Pump

BOOM

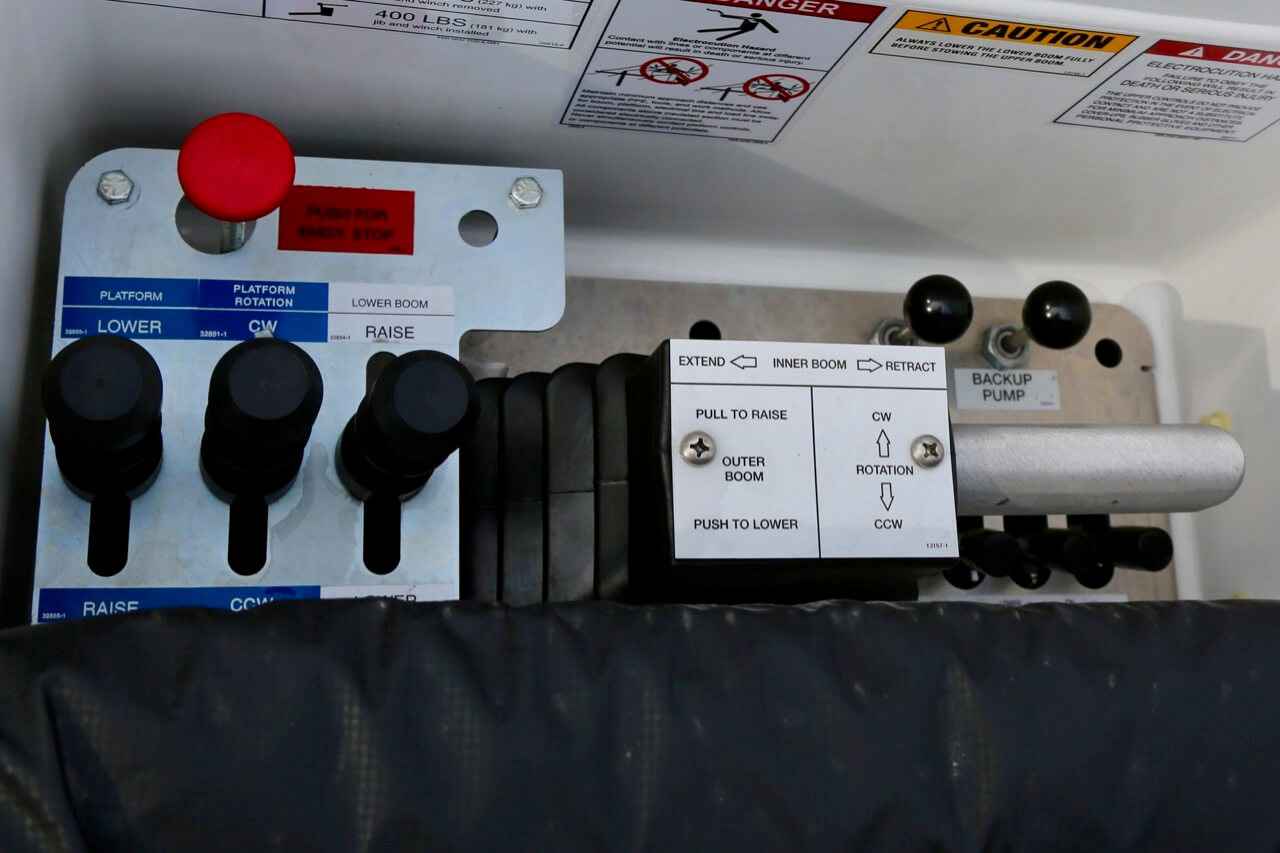

• Lower Boom Articulation 0 to +84°


• Inner/Outer Boom Articulation -25° to +85°


• Inner Boom Extension 103 in (2.62 m)


• Upper Boom Insulation Gap 64 in (1.63 m)


• Lower Boom Insulation Gap 12 in (0.3 m)


• Lower Boom Lift Eye Capacity 1000 lbs (453.59 m)


• Boom Rotation: Continuous
