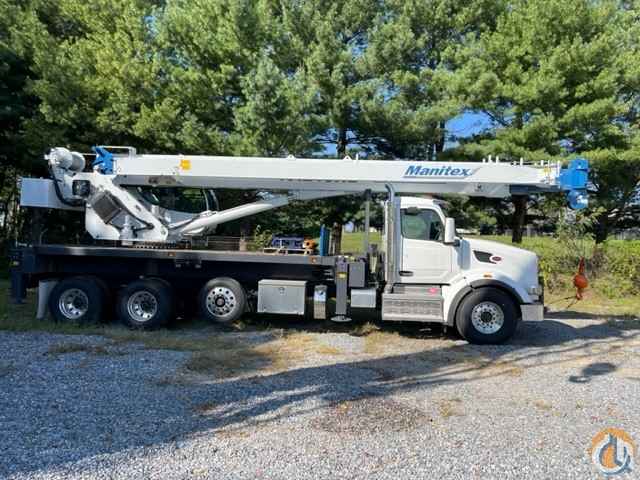

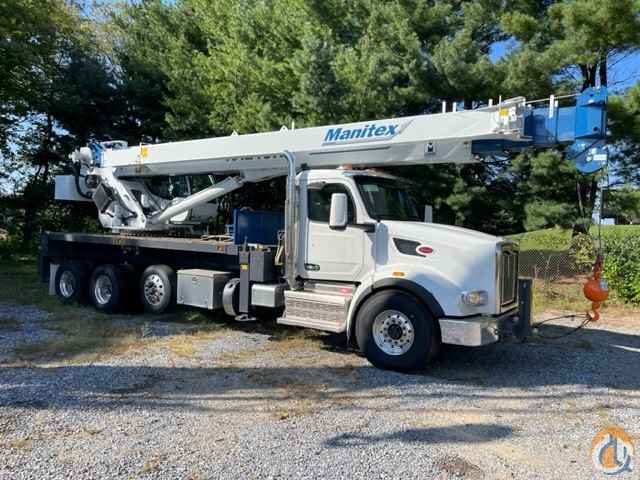

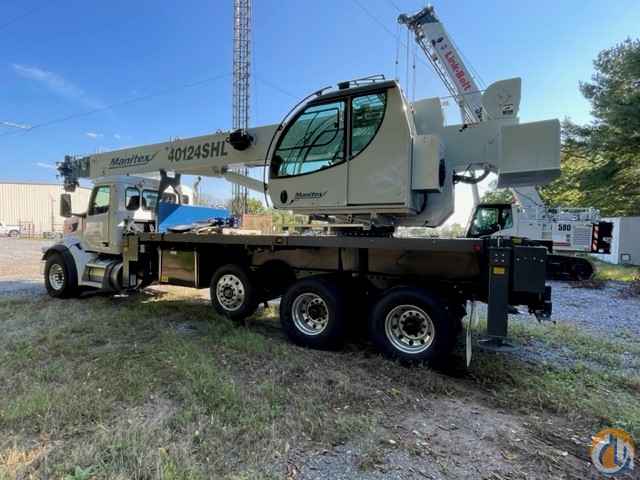

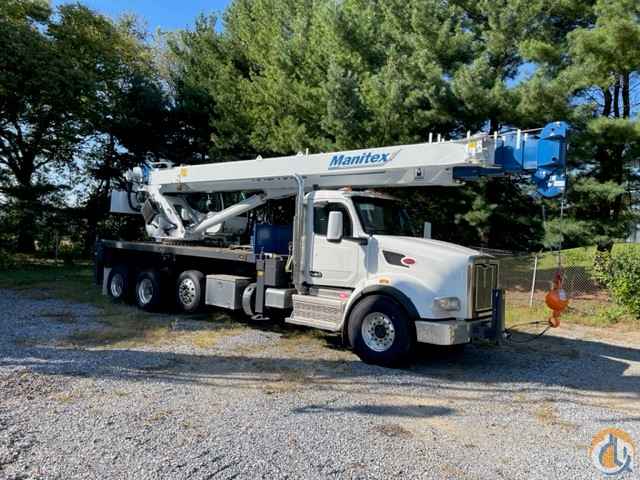

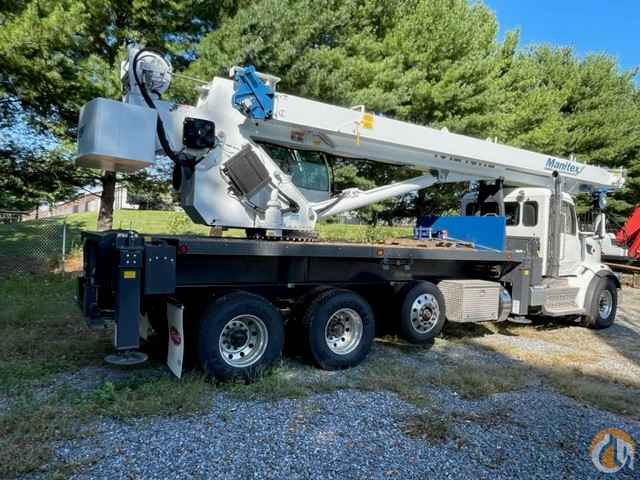

One—2024 MANITEX MODEL TC-40124 SHL 40 Ton Truck Mounted Crane equipped as follows:

CRANE STANDARD:

5 section, 124’ Telescopic Main Boom

380’ of 5/8” Rotation Resistant Wire Rope

Audible Outrigger Motion Alarm

115 Gallon Hydraulic Reservoir with suction strainer

Outrigger Monitoring System for Verification Only

Turret, Rotation Bearing, & Hi- Torque Swing System

Load Moment Indicator w/ Audio/ Visual Capacity / Shut-off

4- Out & Down Outriggers 22’ Maximum Spread

Capacities for Intermediate 13’4”, and Retracted 7’2”

Removable Boom Rest

2- Retractable Ladders for Bed Access

3- Section Vane Pump-CCW Rotation Standard

Lower Frame for 10’ Flatbed

Hydraulic Oil Cooler

Pilot Controls

Bubble Level

ROC Solid Radio Remote Outrigger Controls Valve for FBS

EQUIPMENT:

3-load 2 Speed Hoist, Grooved Drum, Hoist Rotation Indicator

7-ton Ball

2 Upper / 3 Lower Sheave Quick-Reeve Boom nose

Hard Wired Anti-two block with Lockout

Boom Hoist Cylinder

System Pressure Gauge

360 degrees Area of Operation

Continuous Rotation

Tilting Cab, w/ Heater, Windshield Cover

Engine Monitoring System

Engine Start Stop

Operators / Parts/ Service Manuals

Boom Length and Angle Indicators

Electronic Throttle

Foot Throttle

Free Swing

Signal Horn

INCLUDED CRANE OPTIONS:

92

- 30.5’ – 55’ 2 Piece Jib with Hardwired Anti- Two Block

- 10’ Steel Bed

- Standard Mounting

- Braden Main Winch

- Operators Cab Air Conditioning

- Video Camera

- Hot Shift PTO

- 15-ton 1 Sheave Quick Reve Block for 1-3 part line

- 5^th Front Center Stabilizer and Mounting

- Auxiliary Hydraulic Oil Cooler

- 24” Steel Bulkhead

- 5 - 31” x 31” Cribbing Plates

- Cribbing Storage Racks

- 1-Toolbox Aluminum 36” x 24” x 24” Chassis Mount

- Current Annual Certification.

CHASSIS CRANE WILL BE MOUNTED ON:

2022 PETERBILT 567

X-15 500 HP Engine

EATON FO16E308LL 10 SPEED ULTRASHIFT PLUS TRANSMISSION

Front Axle: 20,000 lb

Front Tires: 425/65R22.5

Rear Tandem Axle: 46,000 lb

Rear Tires: – 11R22.5

13,500 LBS. Pusher Axle

PRICE: $523,000 USD

For more information, contact Robert Greene at (703) 975-8200 or via email at rgreene@linkbelt.com
