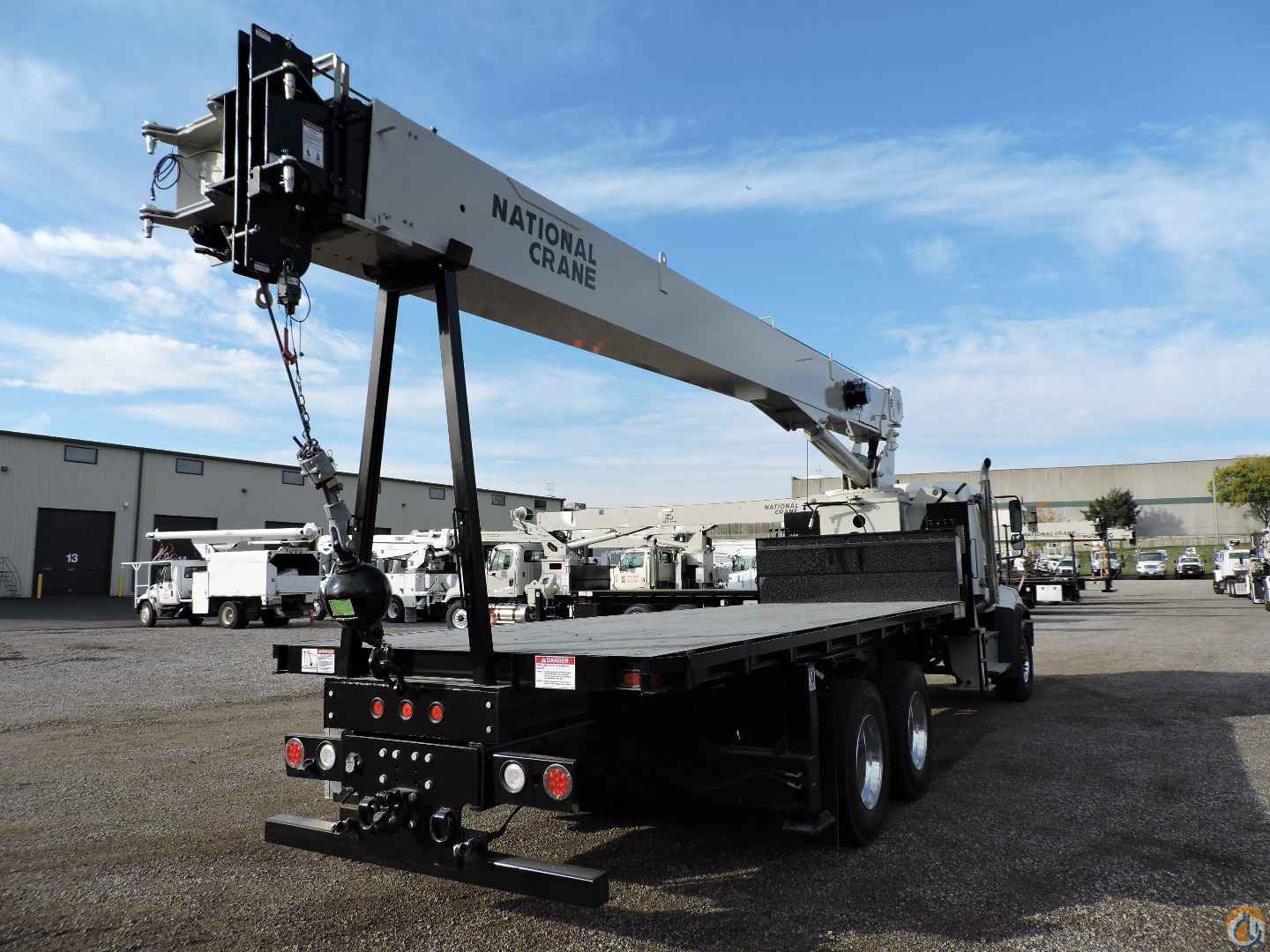

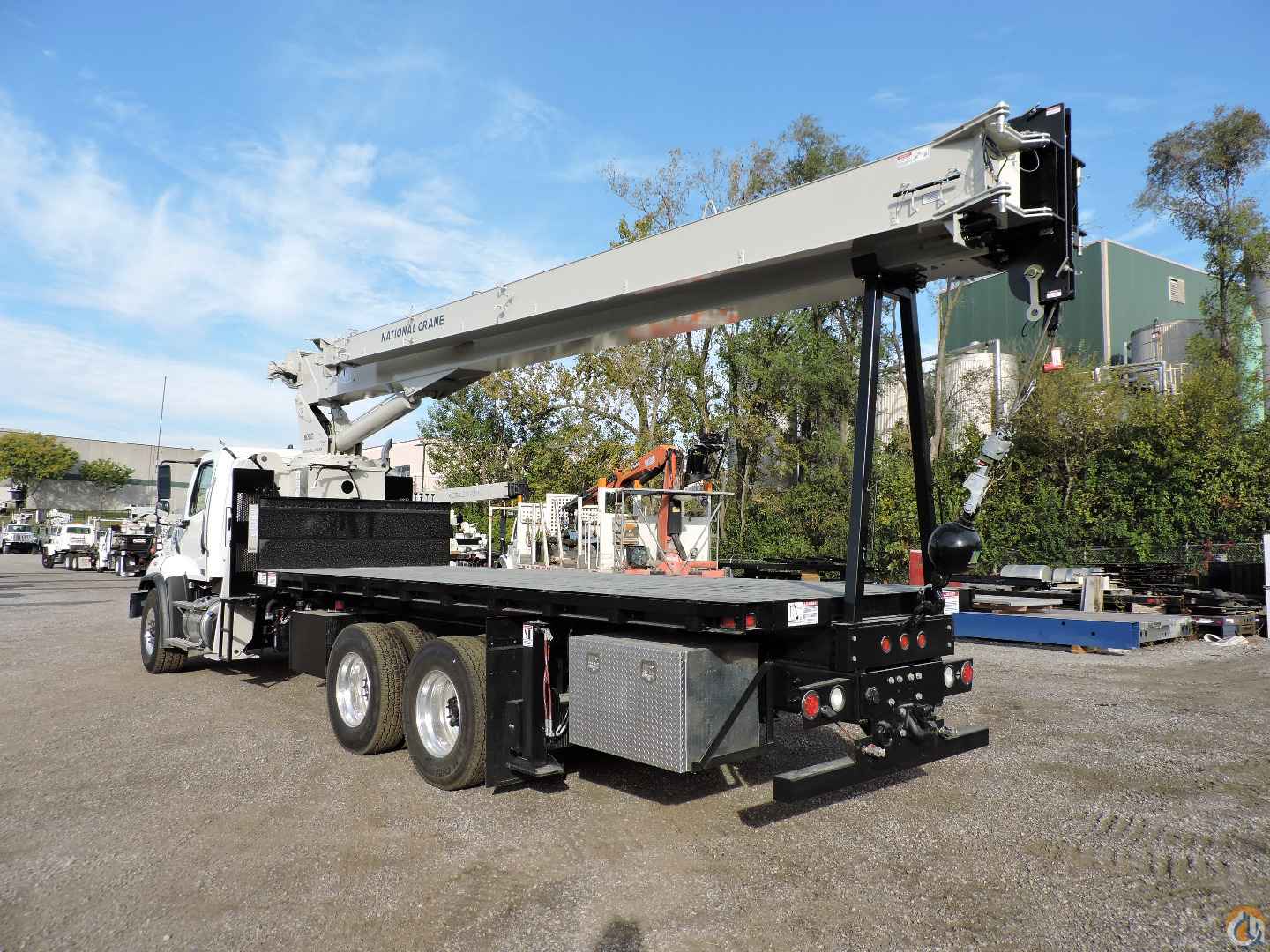

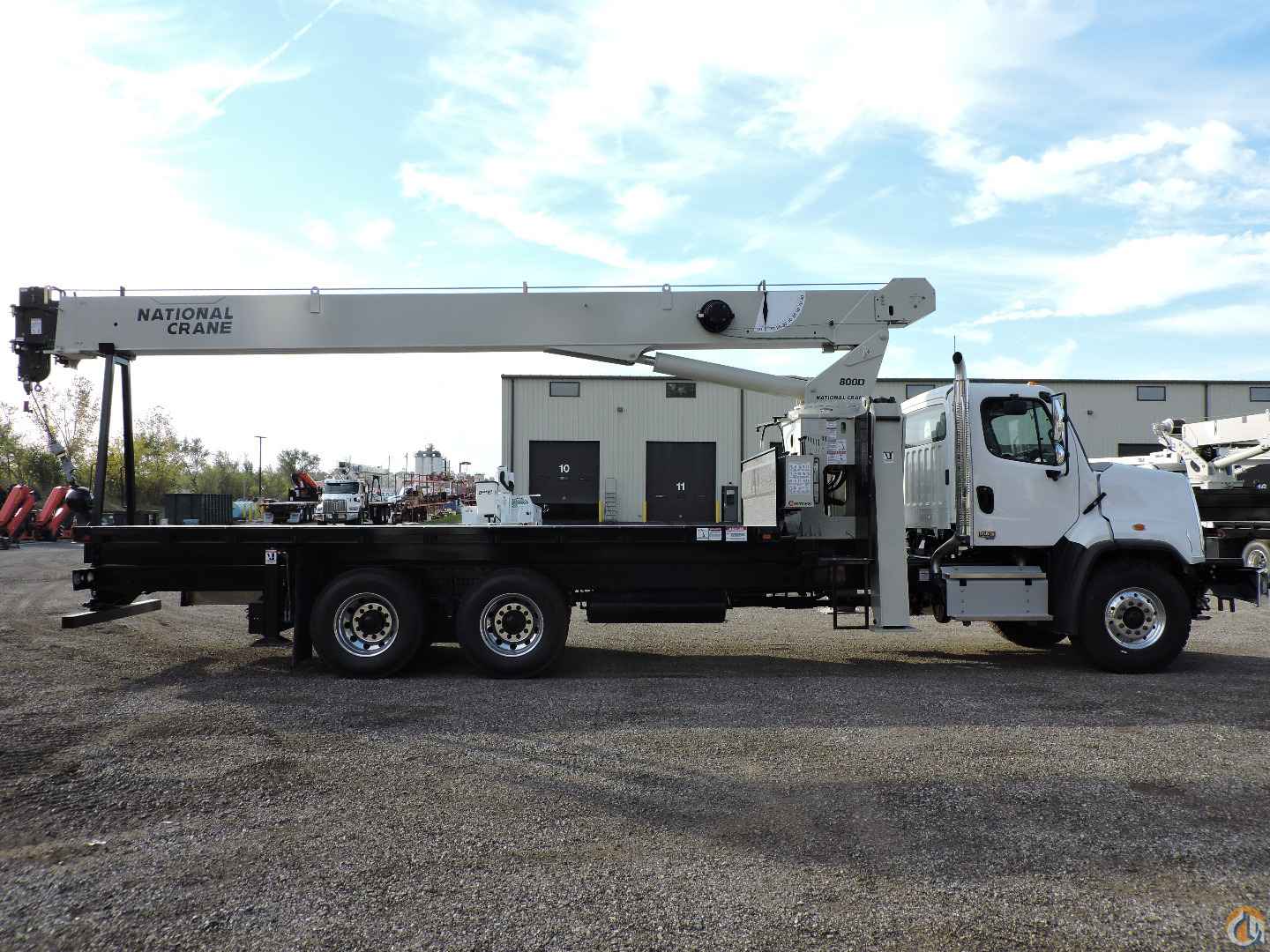

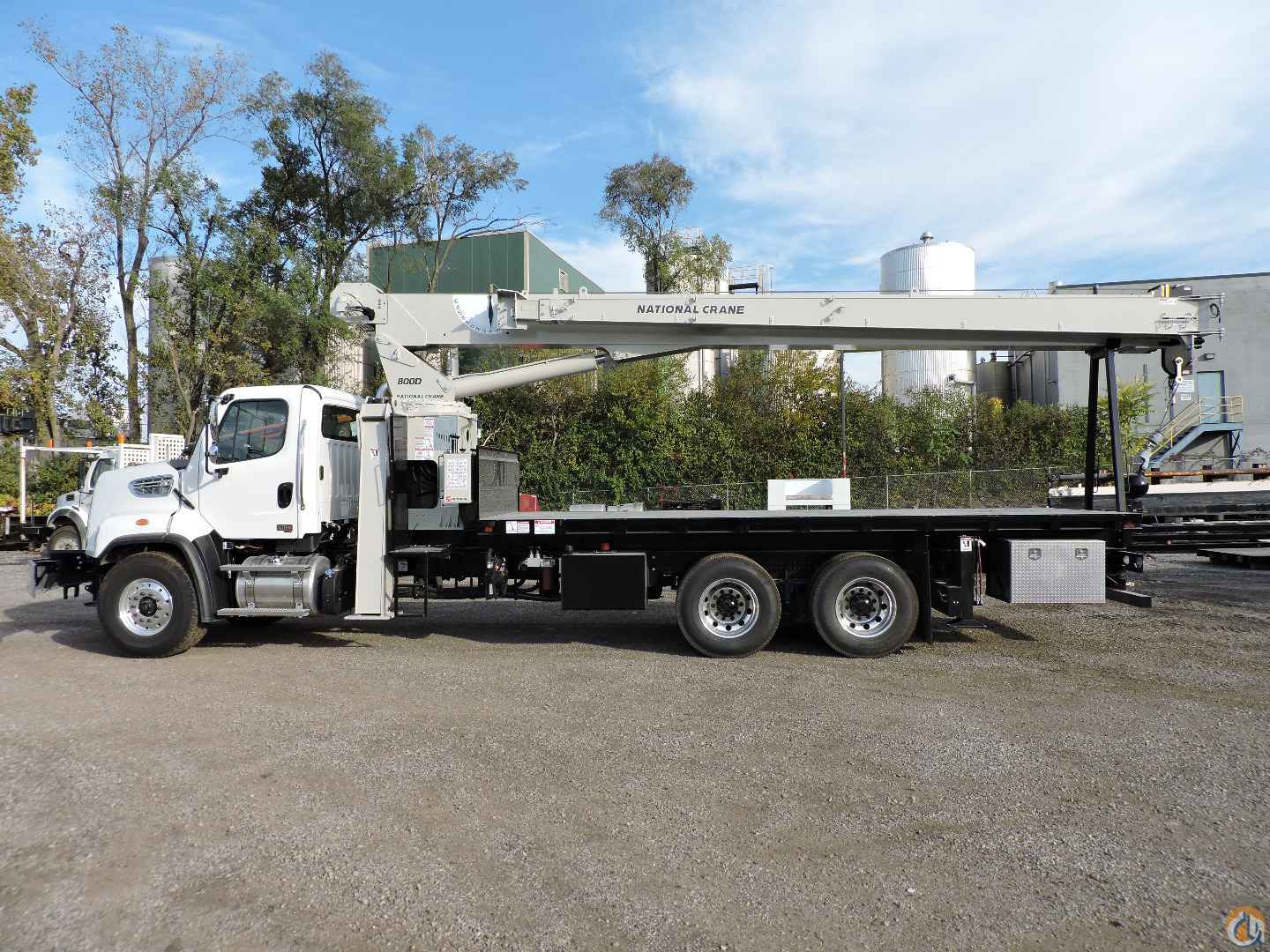

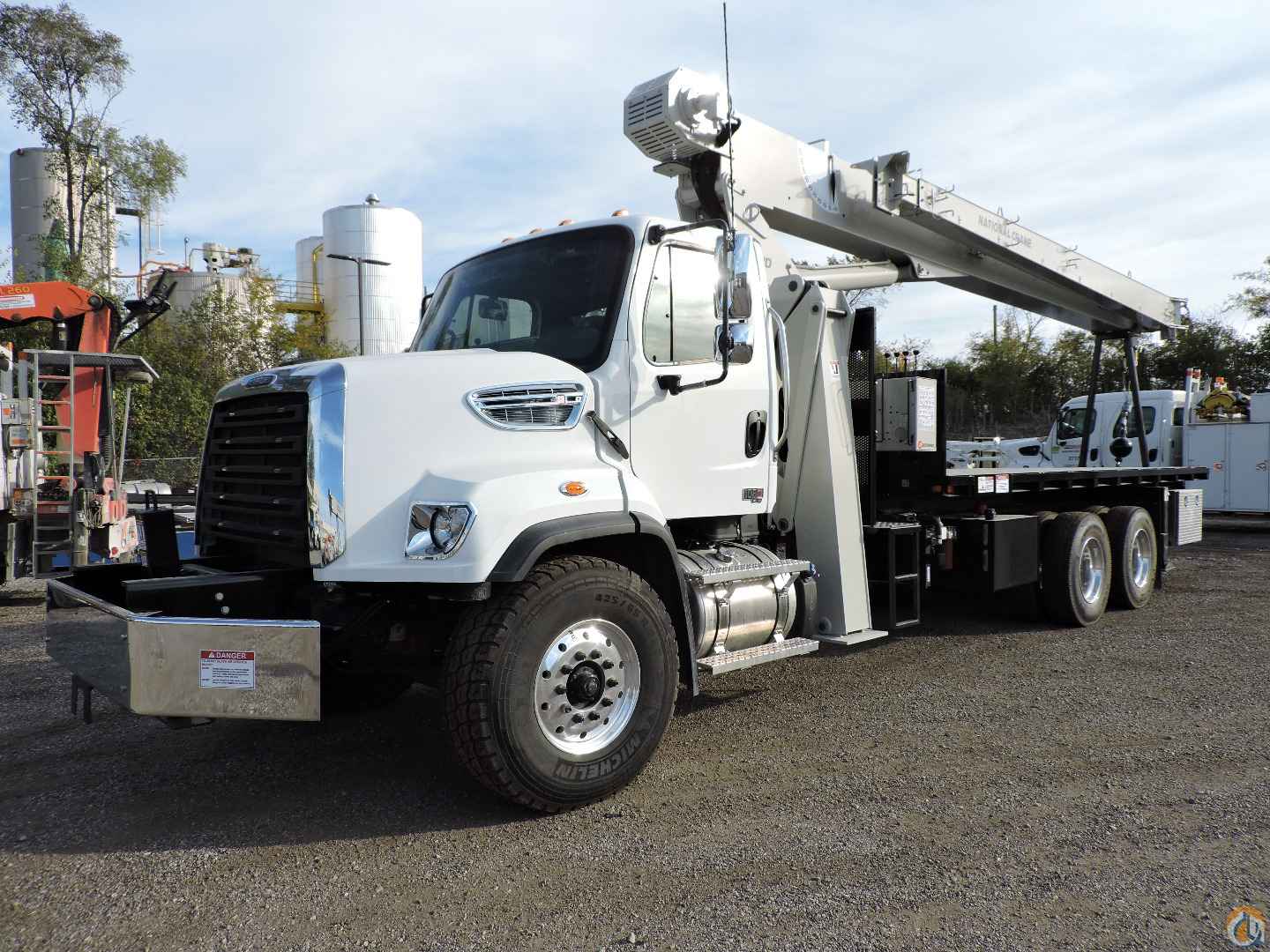

National Crane 8100D equipped as follows:

- 23 ton capacity

- 29.5’ to 100’ four (4) section telescopic boom – 110’ sheave height

- 25’-44’ telescoping jib

- “A” type box slide outriggers with swivel pads

- Out and down rear hydraulic stabilizers with 16’ span

- Single front outrigger for 360 degree stability

- 22’ super-duty wood deck with 30” steel bulkhead

- Outrigger motion alarm

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case.

- Internal anti-two block wiring

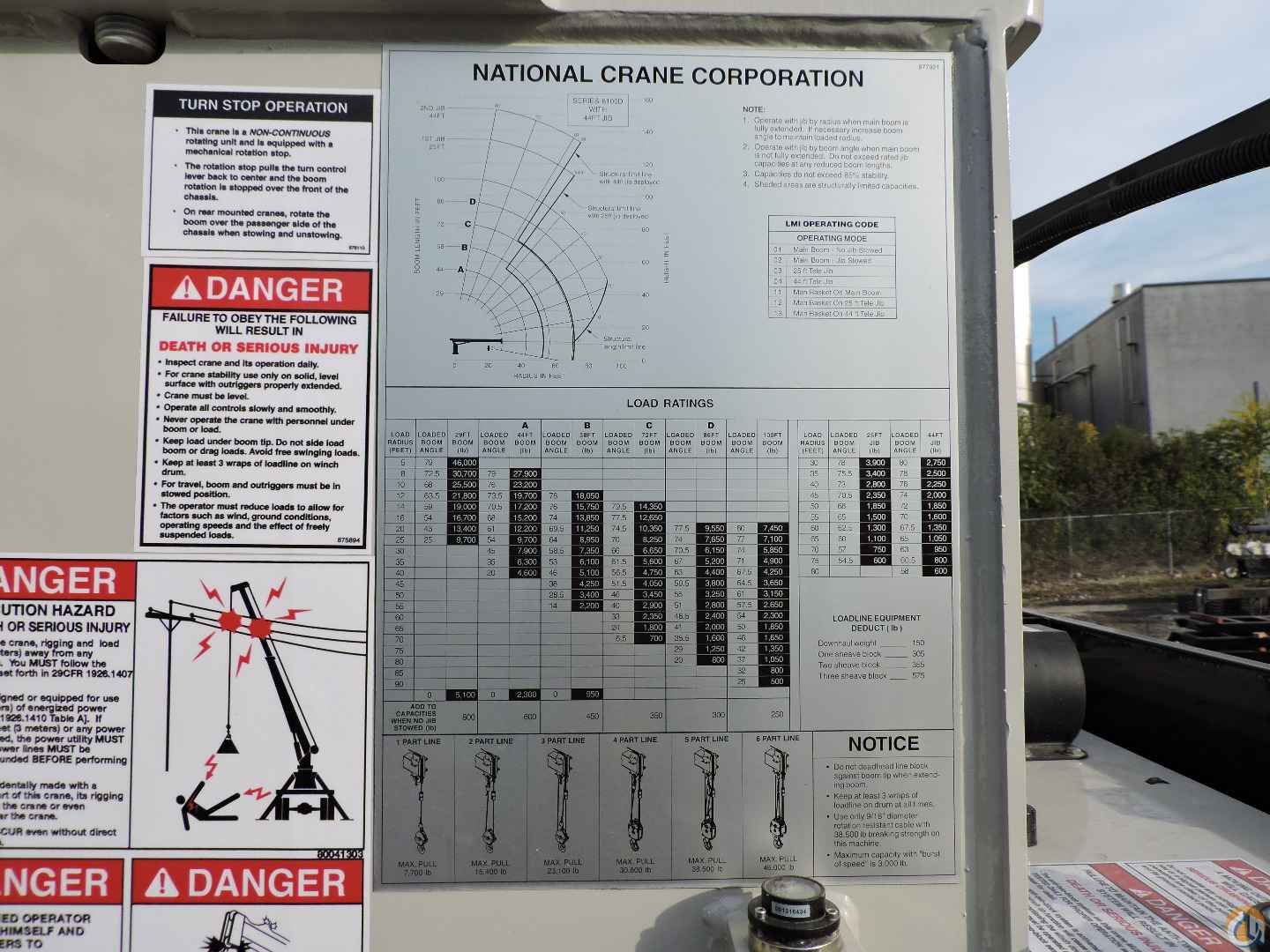

- Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- 7-ton round downhaul style weight with top swivel and hook

- Burst-O-Speed winch with 147 FPM and 206 FPM line speed

- Dual side stand-up operator’s stations, dual engine throttle, horn and engine start/stop

- Operator platform 40” above ground for maximum visibility

- 375^o non-continuous rotation, adjustable swing drive

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

- 66-gallon hydraulic tank with return line filter, oil diffuser, sight gauge, and shut off gate valve

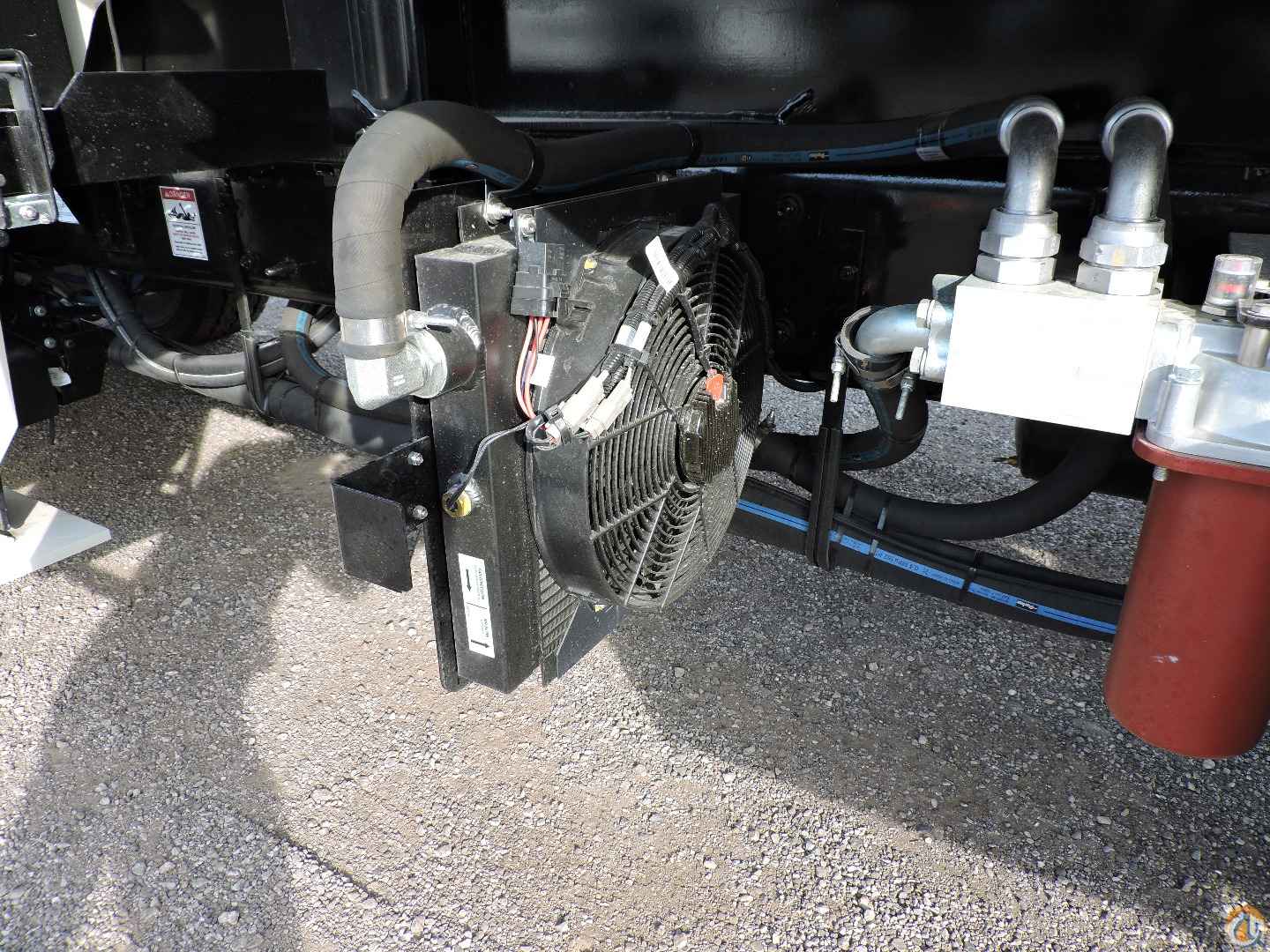

- Single fan oil cooler

- One removable boom rest

- Hour meter

- Back-up alarm

- Hot shift P.T.O.

- Rear bumper underride protection

- 36” x 24” x 24” aluminum tool box

- 30 ton pintle hitch with glad hands

- Painted National Platinum

MOUNTED ON:

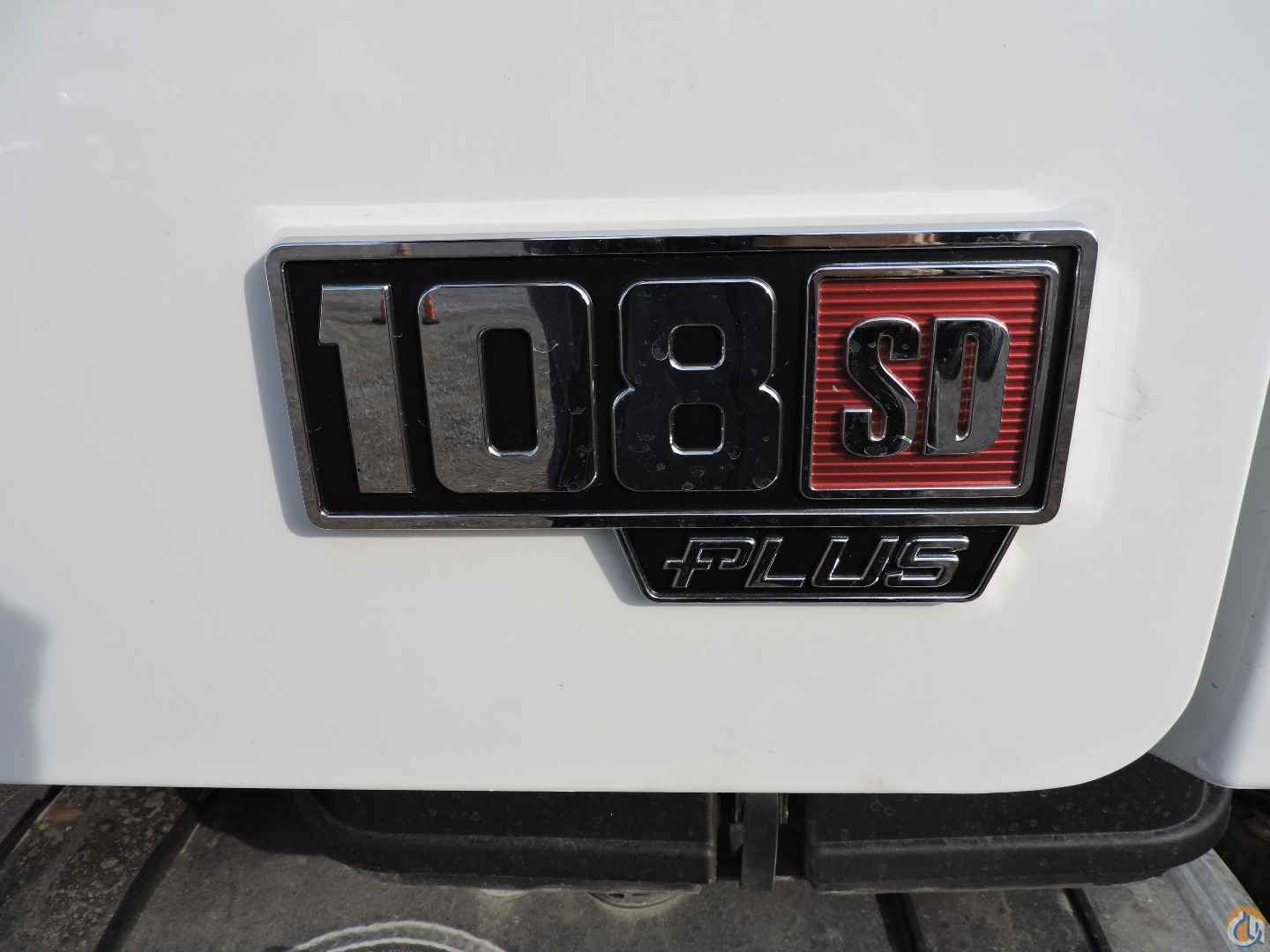

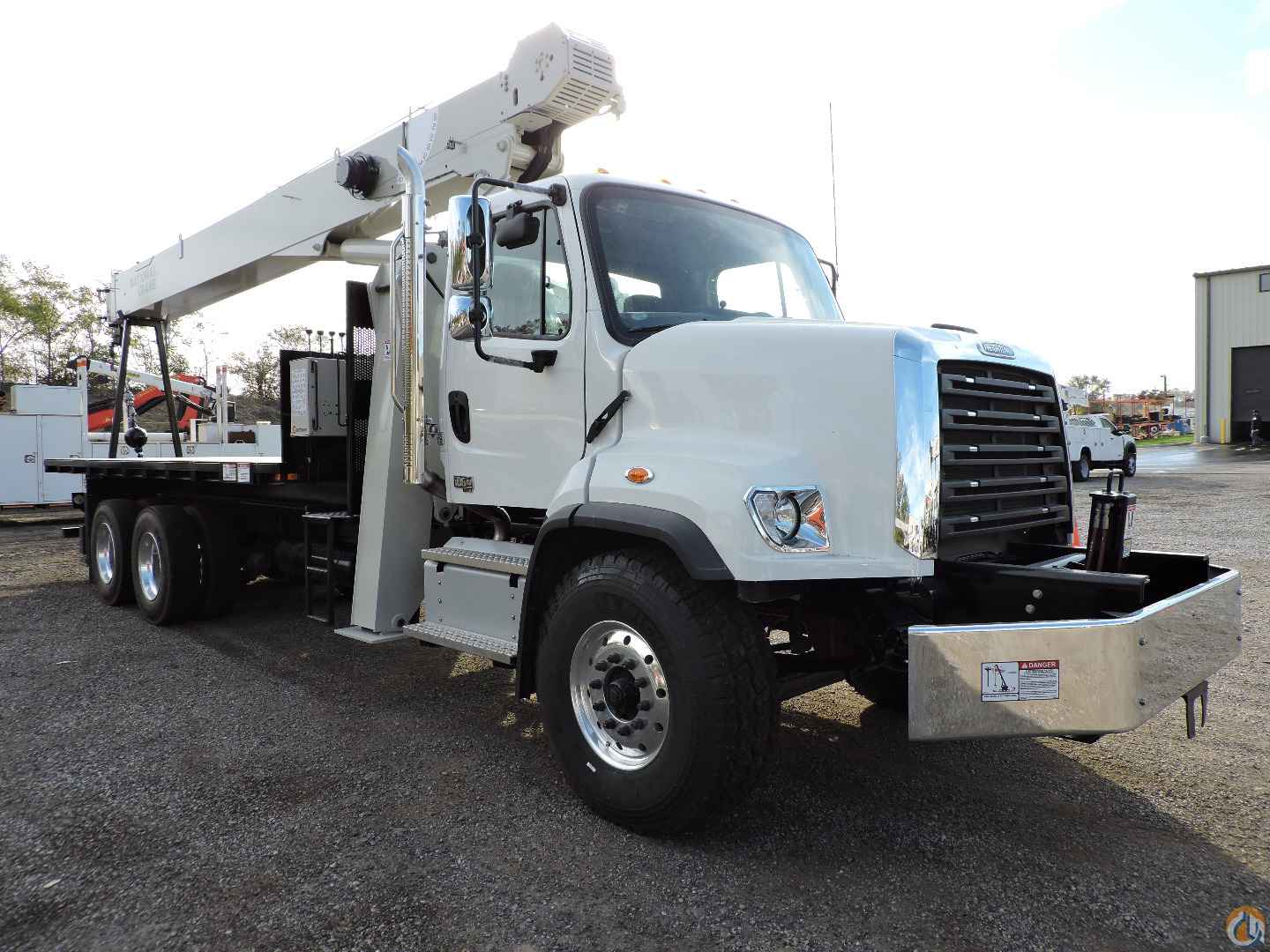

2025 Freightliner 108SD Plus equipped as follows:

- Cummins L9 - 350 HP @ 2200 RPM, 1050 lb/ft @1200 RPM

- Allison 3000 RDS automatic transmission

- Front axle - 20,000 lbs with Taperleaf suspension

- Front tires - 425/65R22.5

- Front wheels - aluminum, 22.5 x 12.25

- Tandem rear axle - 40,000 lbs with Hendrickson Haulmaax suspension

- Rear tires 11R22.5

- Rear wheels – aluminum, 22.5 x 8.25

- Dual locking differential

- 7-way primary trailer cable receptacle

- Dual West Coast Heated Mirrors – LH and RH remote

- 8” convex mirrors under primary mirrors

- Chromed steel bumper

- Front tow hooks

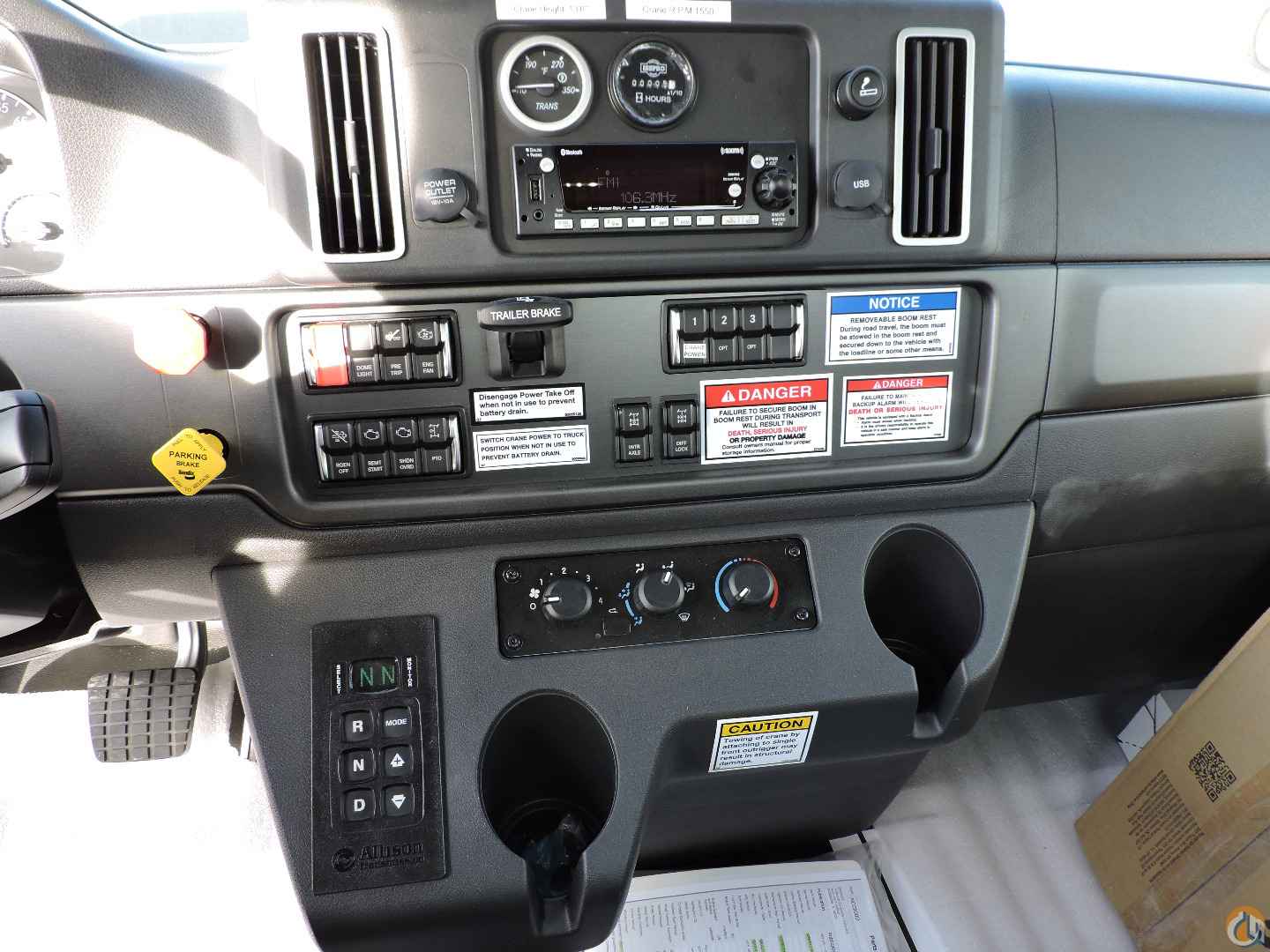

- Air cab

- Air dryer with heater

- High back, air ride driver’s seat - black cordura

- High back, fixed, passengers’ seat - black cordura

- 70 gallon fuel tank

- Adjustable tilt and telescopic steering wheel

- Driver and passenger interior sun visors

- Power windows and doors

- Heater, defroster, and A/C

- Cruise control

- AM/FM/WB Radio with Bluetooth, USB, and auxiliary input

- Painted white
