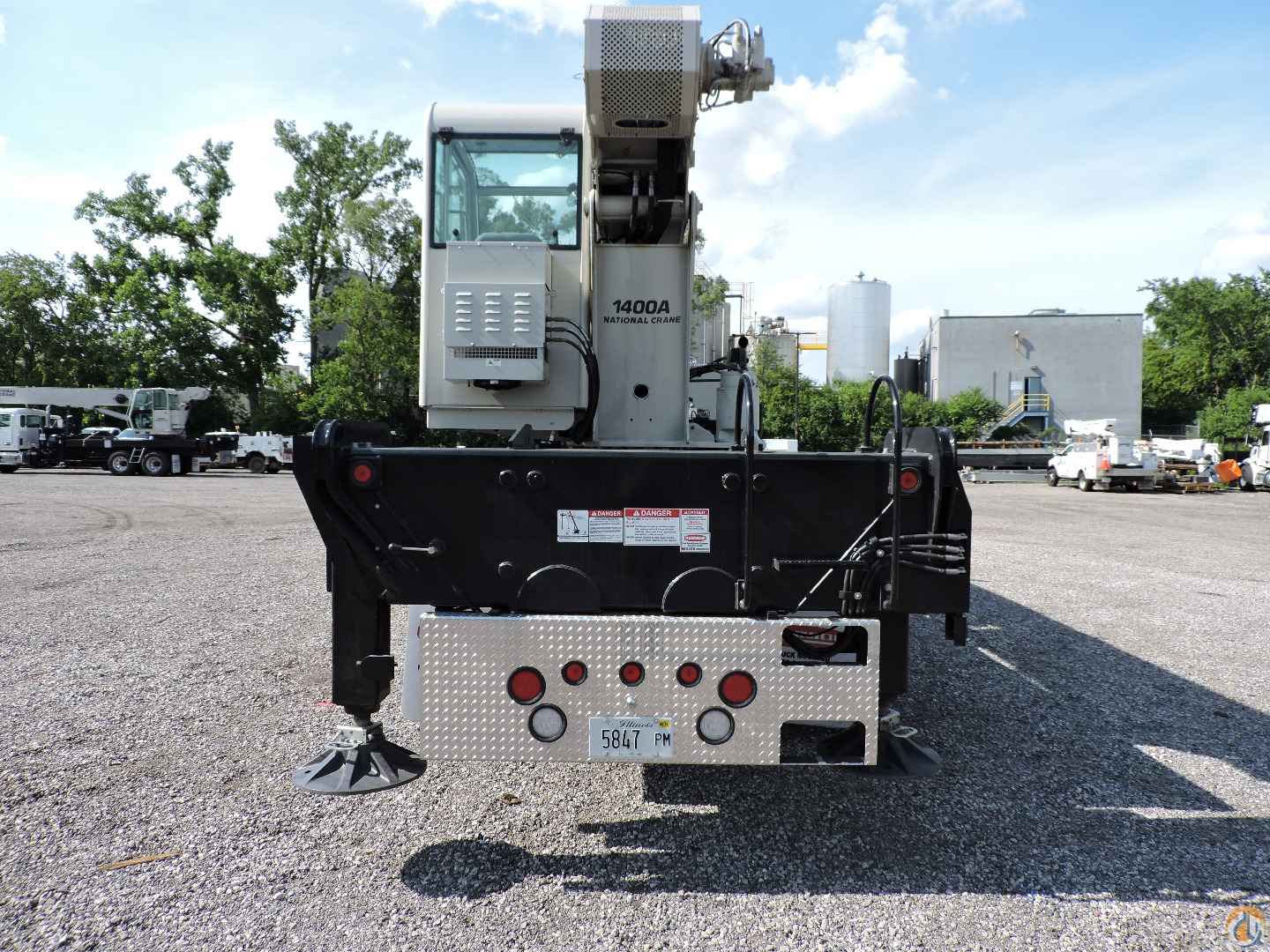

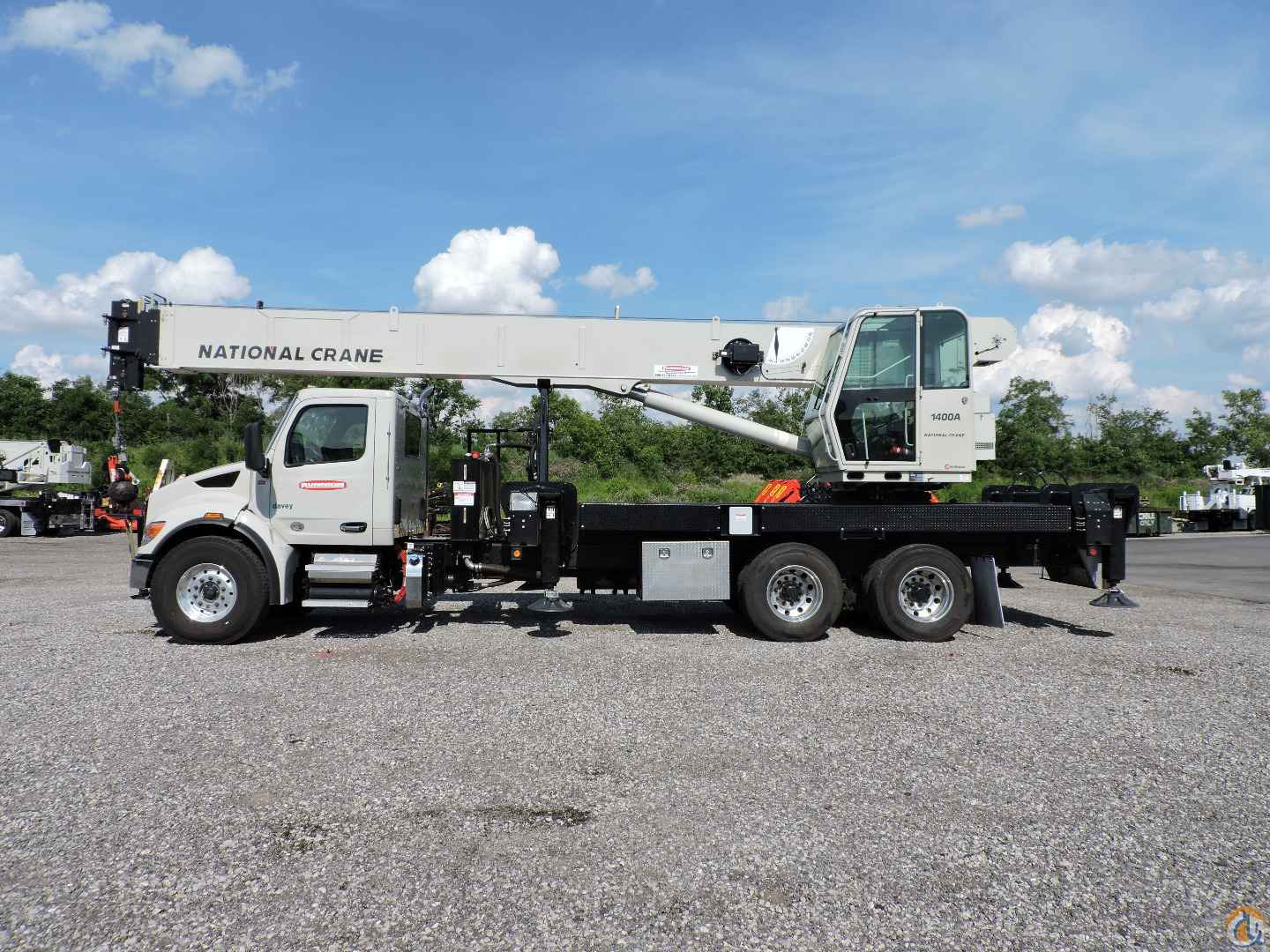

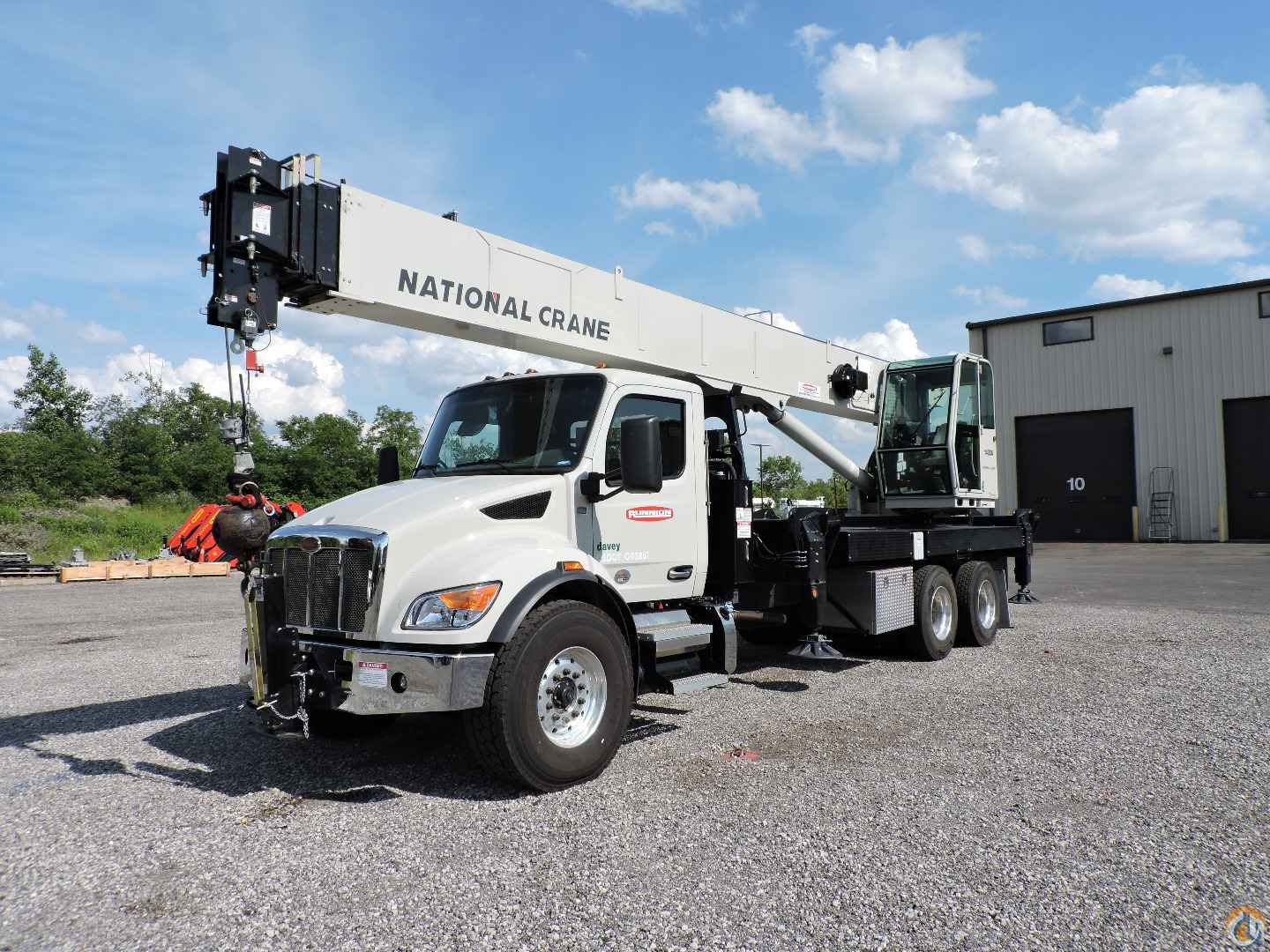

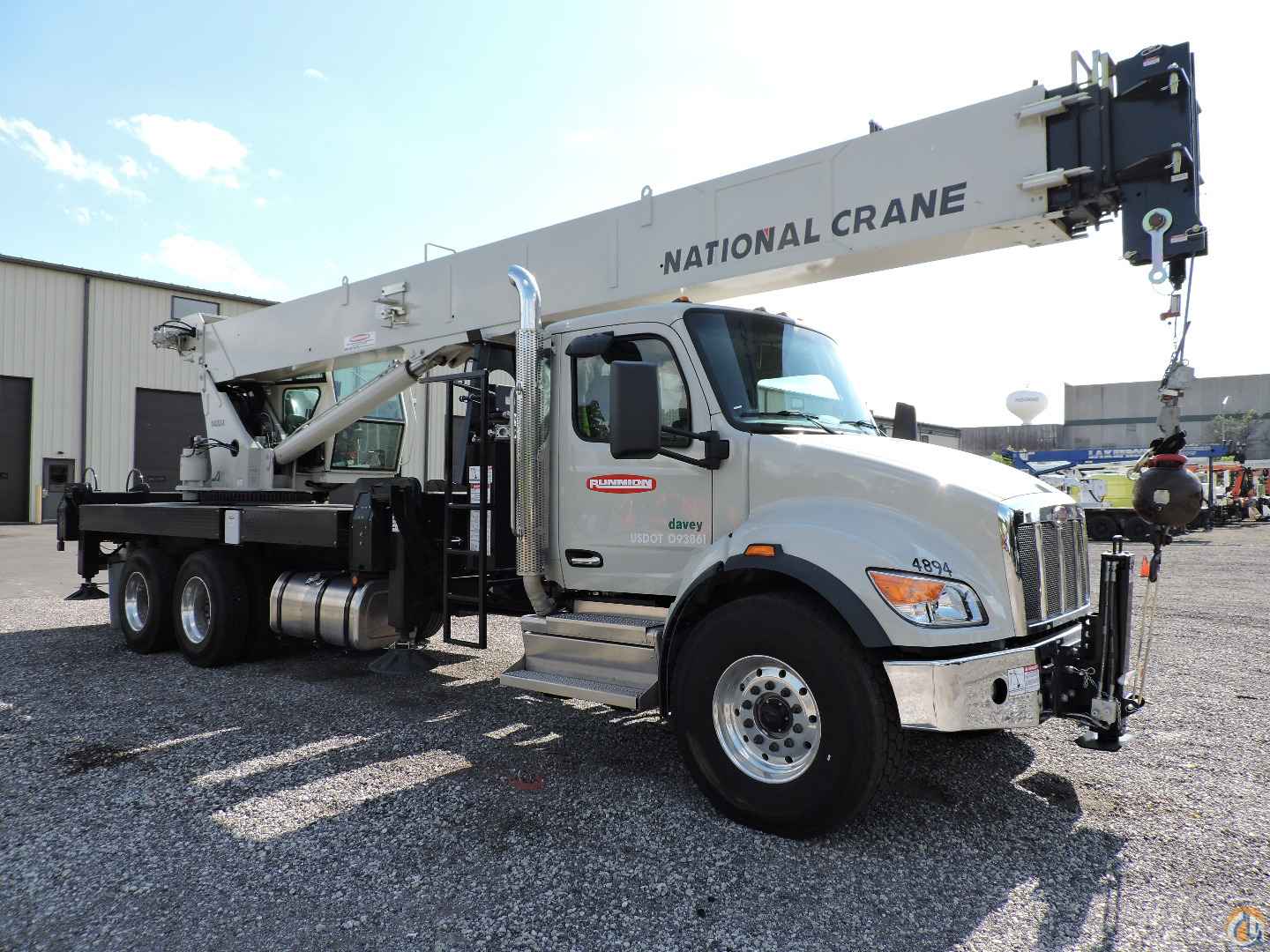

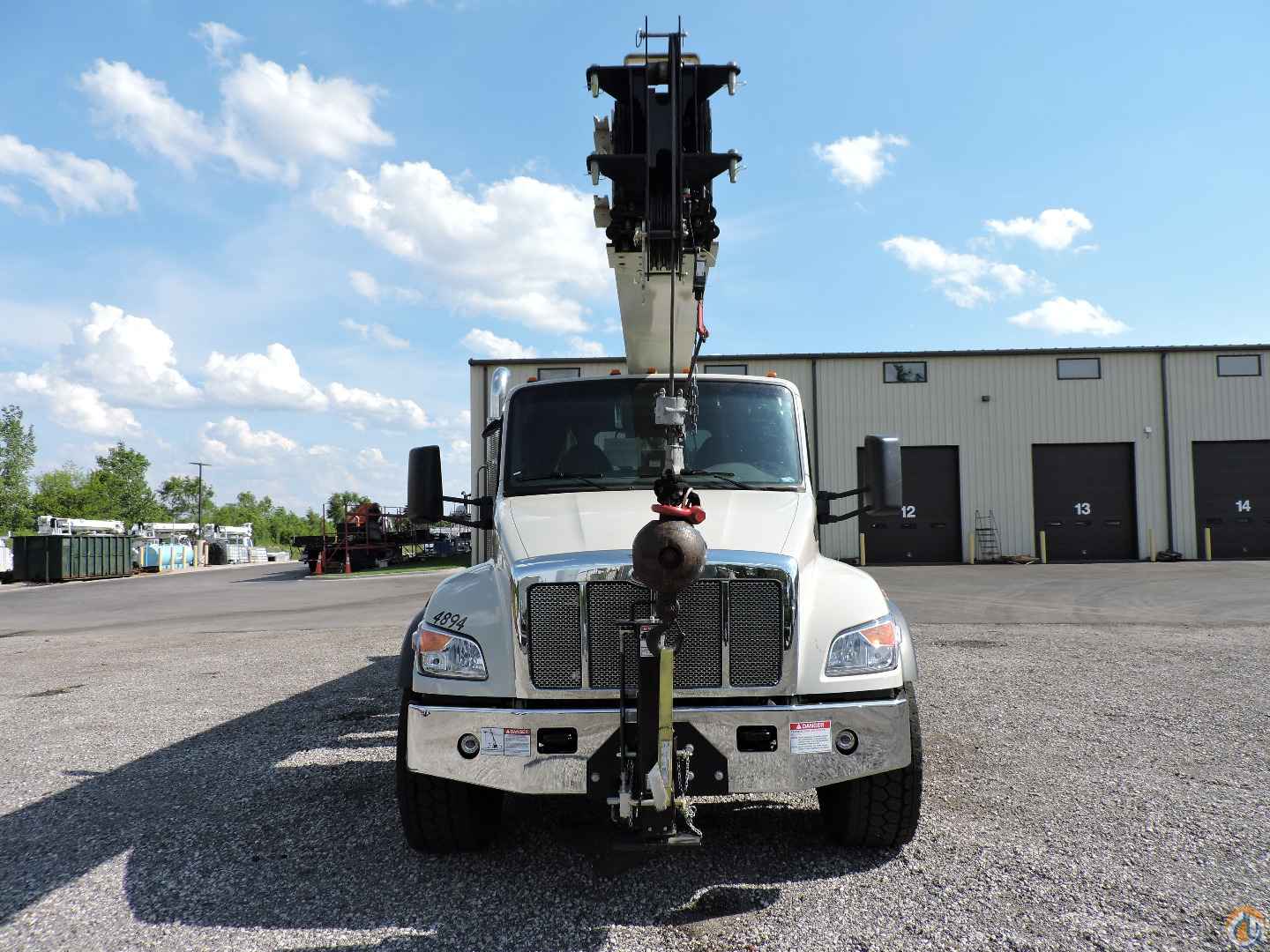

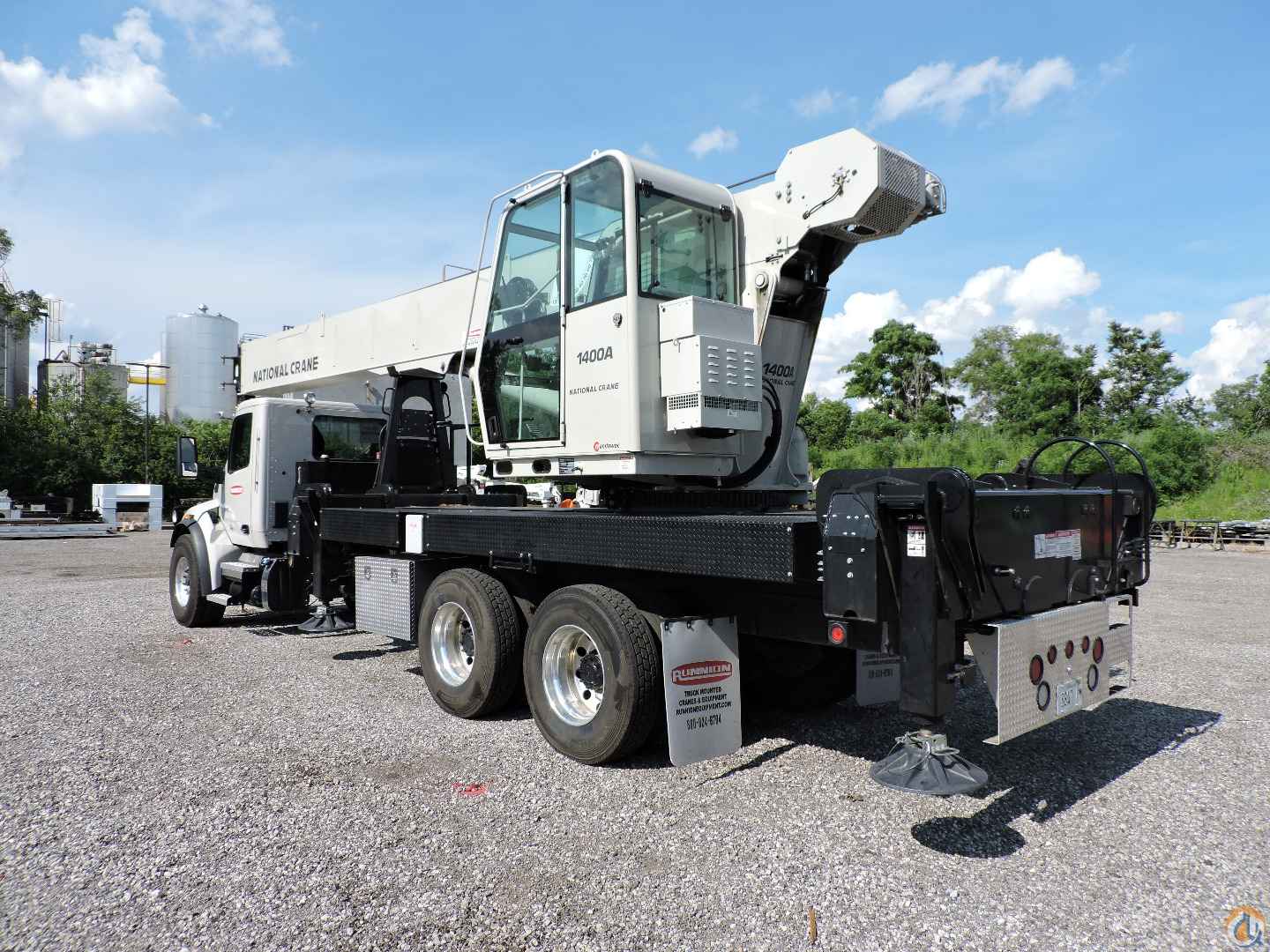

National Crane 14127A equipped as follows:

- 33-ton capacity

- 31.6’ to 127’ full power telescopic five section boom (137’ tip height)

- Outrigger motion alarm

- Two sets of out and down crossframe outriggers with 24.7’ span (17’ span for reduced capacity)

- 20” diameter polymeric removable outrigger pads

- Additional outrigger controls at operator’s seat

- Level bubbles at outrigger control stations

- Single front outrigger for 360-degree stability includes “First Up” feature

- LMI computer overload shutdown/warning system

- RCL displays information on length and angle of boom, working radius, rated load, and total weight being lifted

- Internal anti-two block wiring

- Deluxe Operator cab

- Single axis joysticks in seat arm rests

- Engine start/stop switch

- Horn from operator’s cab

- Air conditioning and diesel fueled cab heater

- 360-degree continuous rotation “Glide Swing” with manual foot brake control in cab

- Manually applied rotation lock for bearing with 360-degree positioning

- Adjustable swing speed

- High performance planetary winch

- 9,000 lb. single part line pull

- 2-speed winch with 5/8” rotation resistance wire rope

- Round downhaul weight headache ball with top swivel; 5-ton capacity rating

- Electronic drum rotation indicator, last layer indicator

- Heavy duty boom rest

- Hydraulic oil cooler

- 99-gallon hydraulic oil reservoir

- Sight gauge

- Suction line gate valve

- One aluminum tool box 36” x 24” x 24”

- Painted “National Platinum”

- Back up alarm

- Hour meter

MOUNTED ON:

2023 Peterbilt 548 equipped as follows:

- 66,000 lb GVWR

- Paccar PX-9 engine, 350 hp @ 2000 rpm, 1050 lb/ft @ 1200 with CARB engine idling compliance

- Allison 3000 RDS-P automatic transmission

- Front Axle – 20,000# with Taper Leaf springs

- Rear Axle – 40,000# with Haulmaax HMX EX 400 suspension

- Front tires 425/65R22.5

- Front wheels – 22.5x12.25 high polish

- Rear tires – 11R22.5

- Rear wheels – 22.5x8.25 high polish

- Differential locks on tandem axles

- Aluminum hubs

- Anti-Lock Braking System 4S4M

- PACCAR 160 Amp alternator

- Block heater

- PACCAR 12V starter

- Three (3) PACCAR Premium 12V dual purpose batteries 2190 CCA

- Bendix air dryer with heater

- Pull cord drain valves on all air tanks

- Painted aluminum air tanks

- 80-gallon aluminum fuel tank

- 14-gallon DEF tank with polished stainless-steel cover

- Driver’s seat – air ride, high back vinyl with dual armrests

- Passenger’s seat – fixed, high back vinyl with left armrest

- Adjustable steering column – tilt/telescope

- Power windows and doors

- Air horn

- ConcertClass Stereo – AM/FM, WB, USB, Bluetooth phone

- Cab air suspension

- Painted Sand Gray
