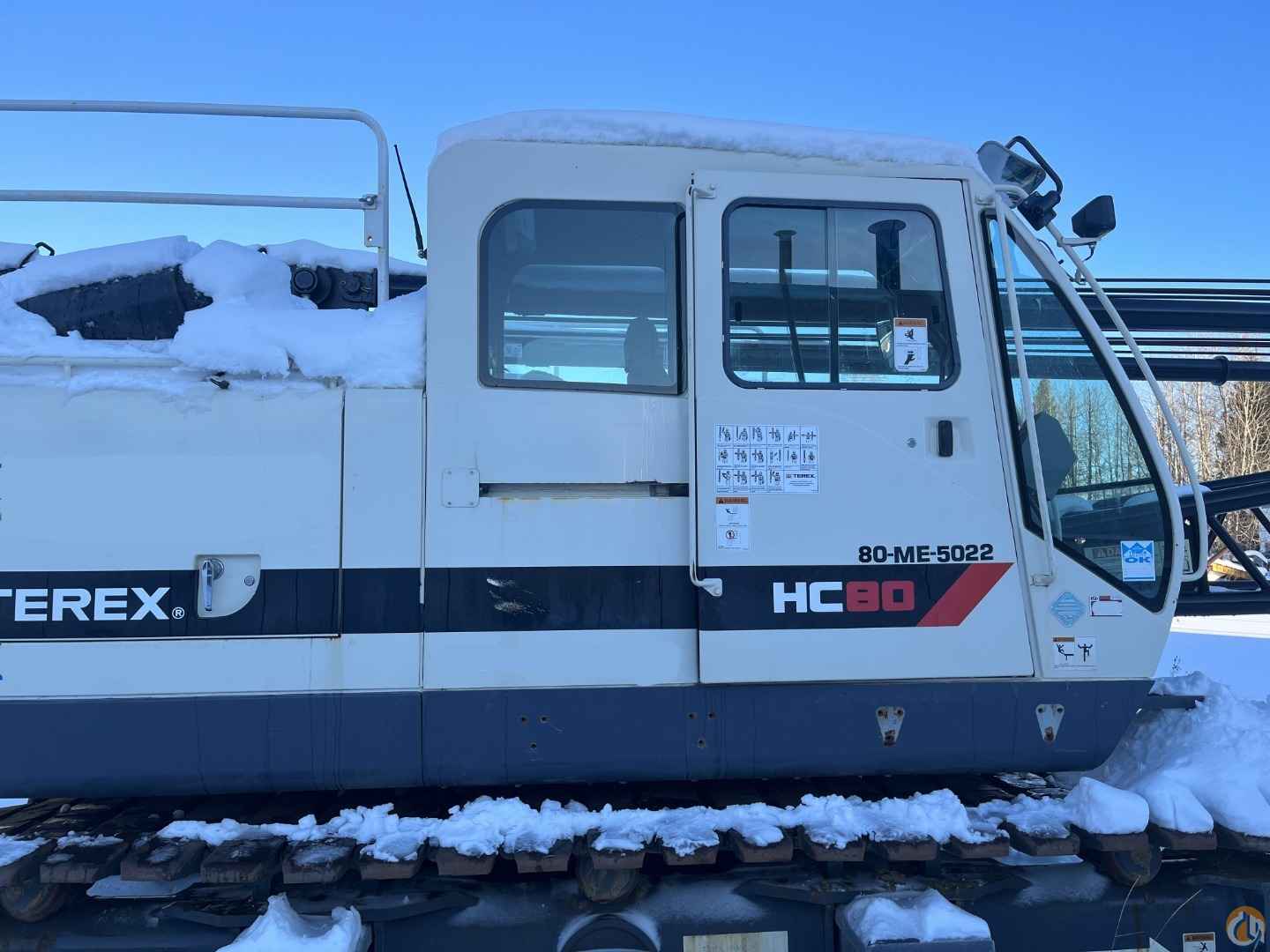

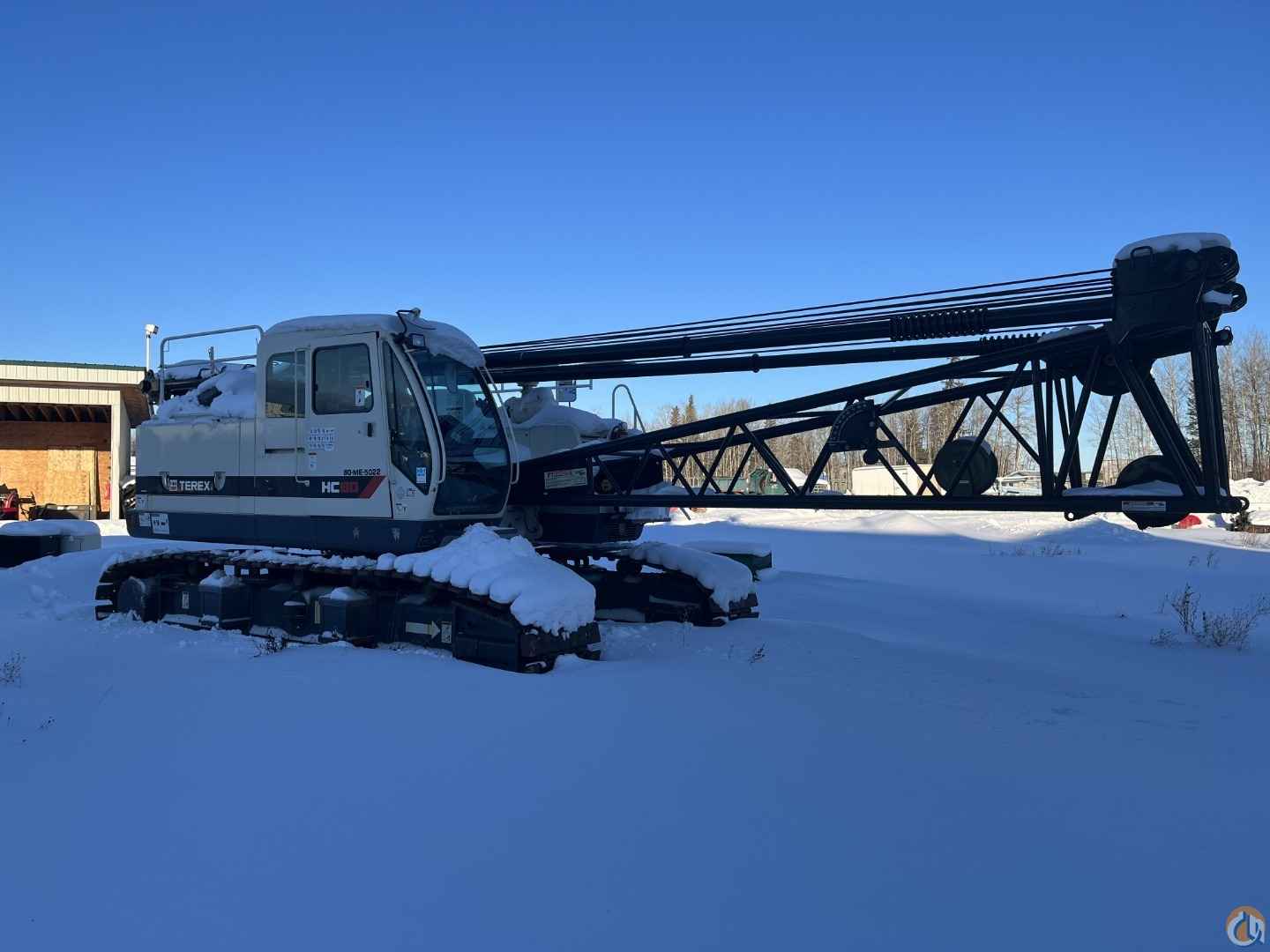

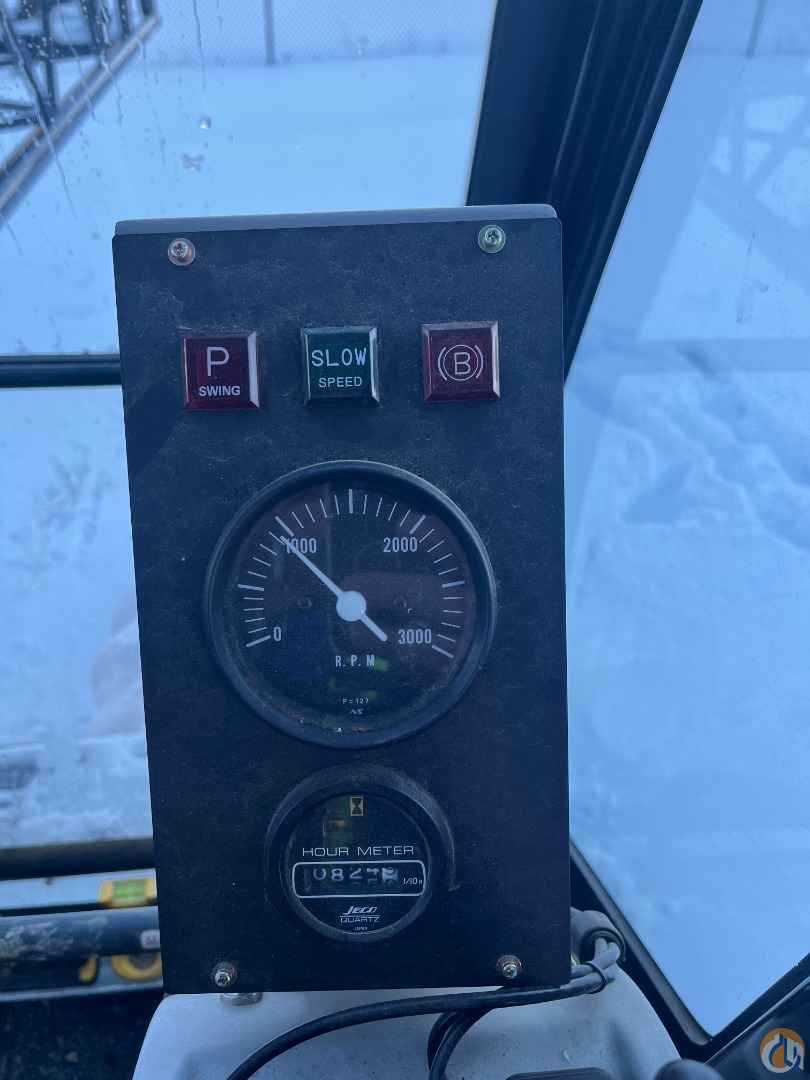

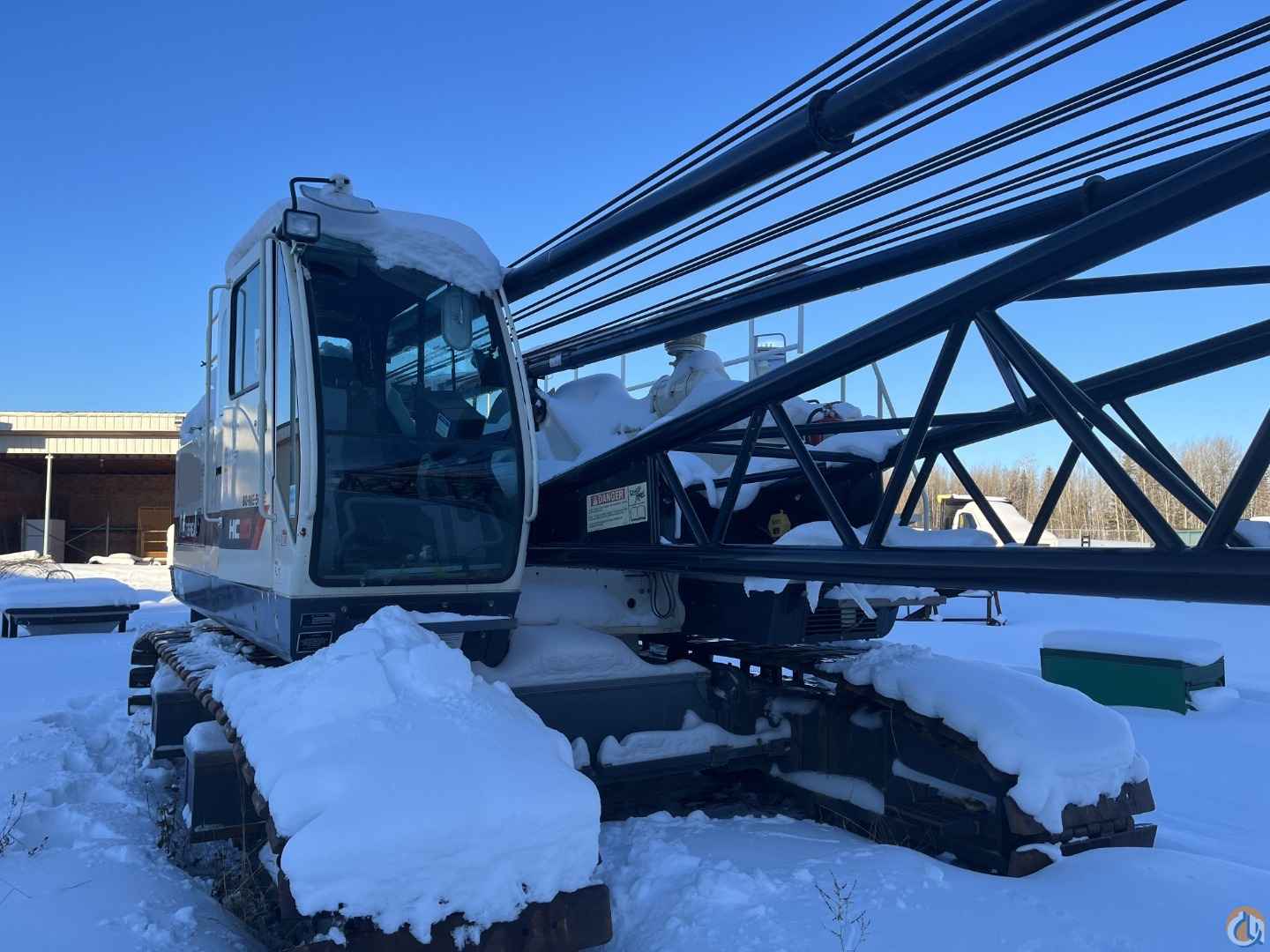

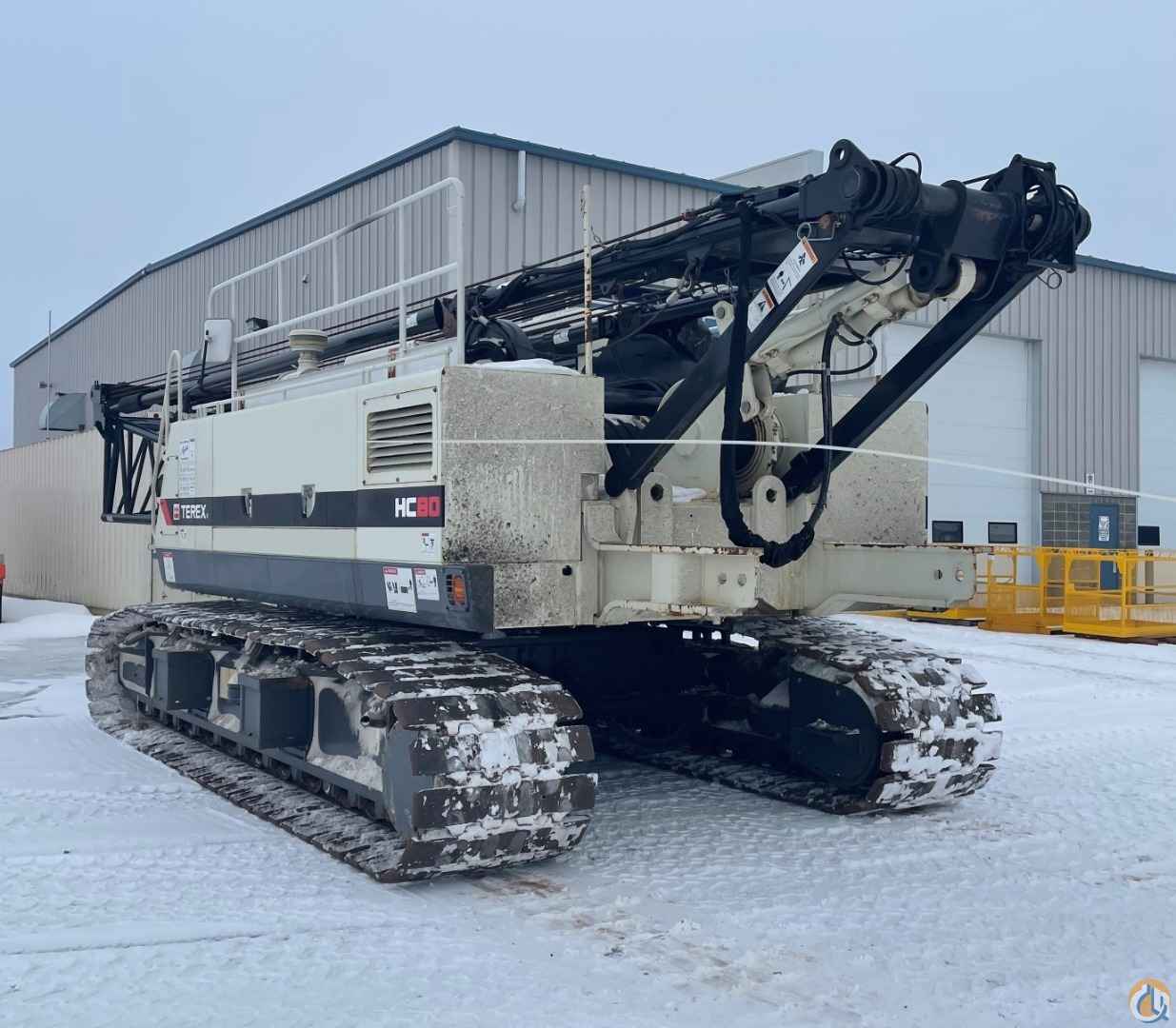

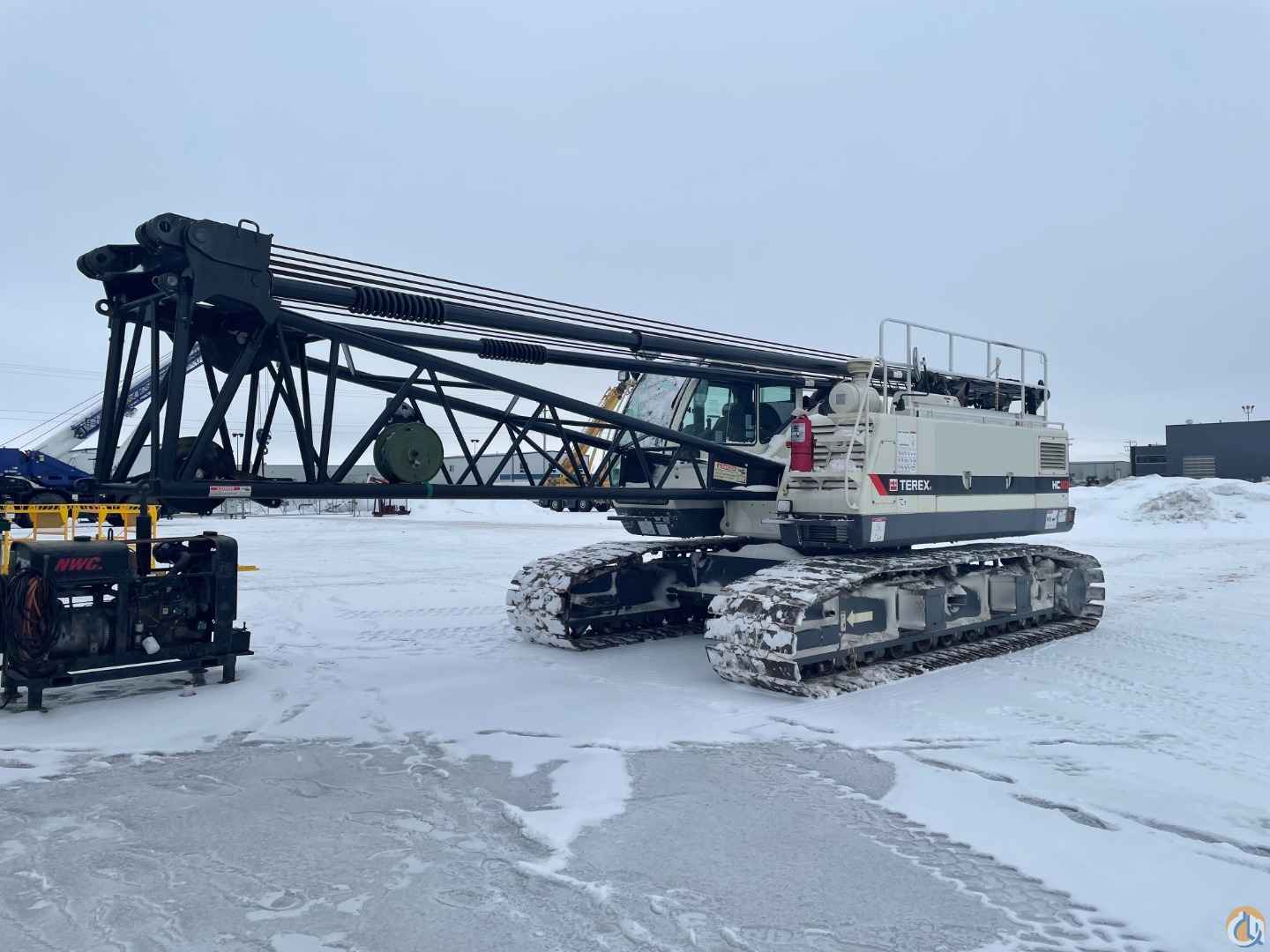

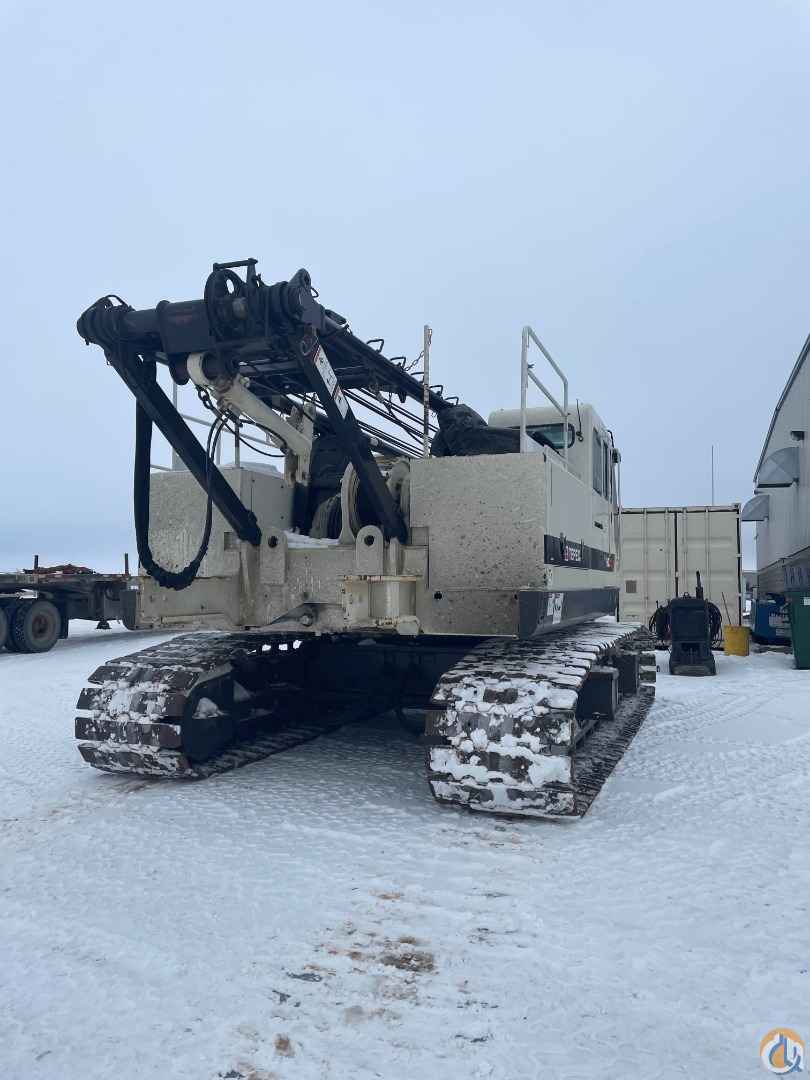

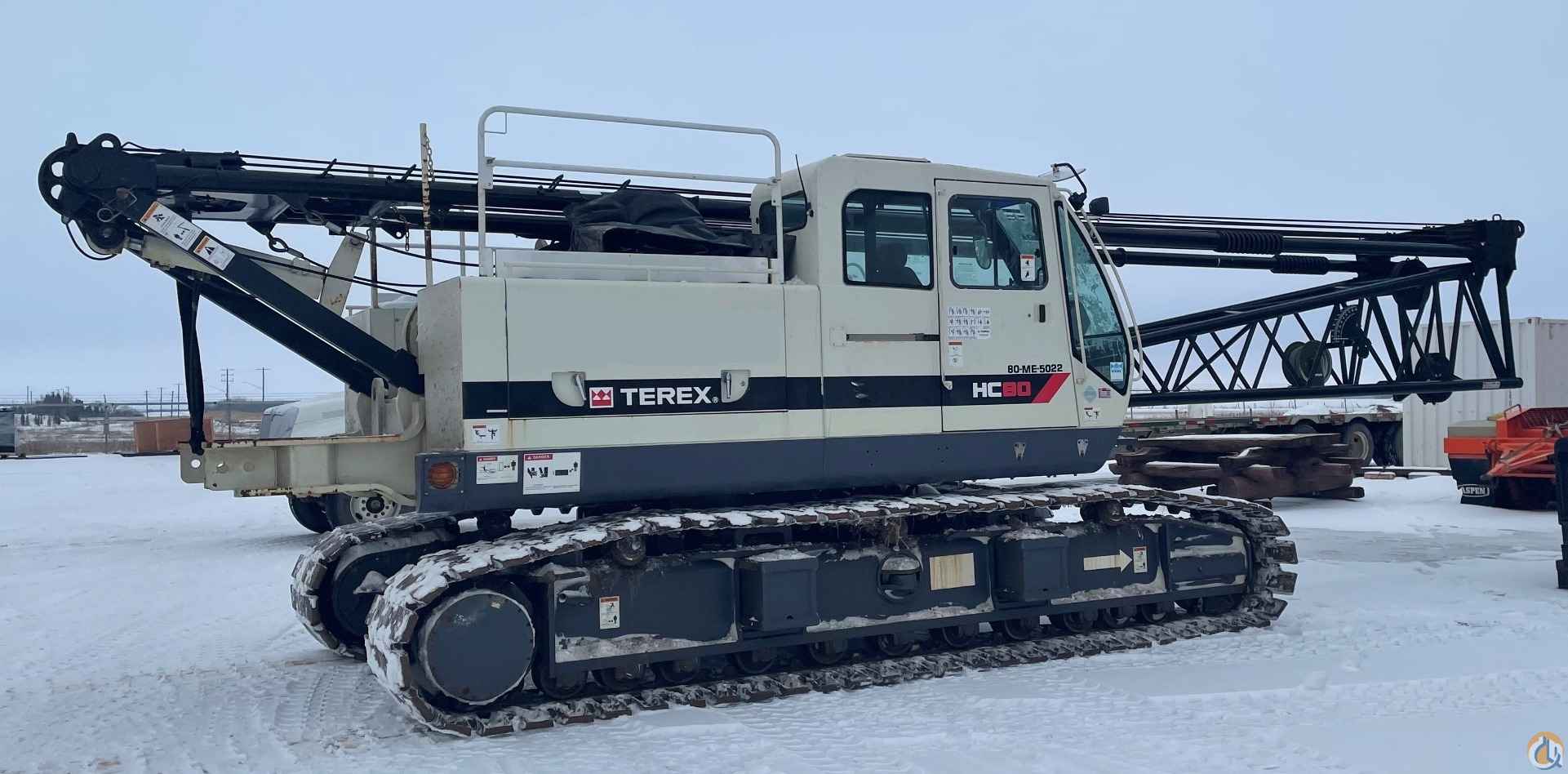

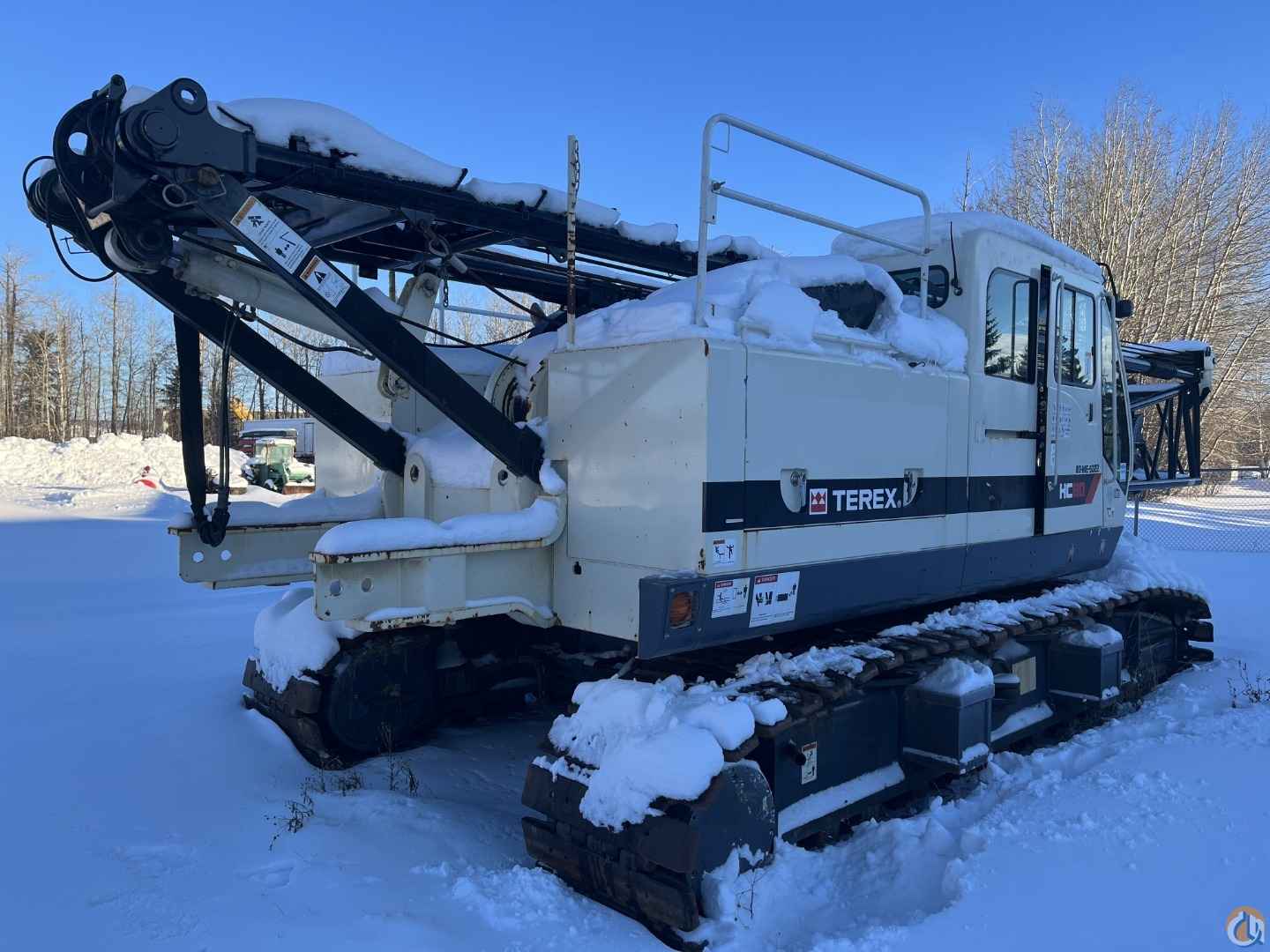

2015 TEREX HC80 830hrs REDUCED

MAXIMUM LIFTING CAPACITY

- 80 TONS

BOOM SYSTEM

47HI BOOM W/ OFFSET TIP

- 100 FT MAXIMUM COMBINATION MAIN BOOM LENGTH (20’ BUTT, (2) 30’ INSERTS & 20’ TIP).

- 140 FT MAXIMUM BOOM AND JIB COMBINATION LENGTH (40’ +9HL JIB)

- 47 HI TUBULAR CHORD BOOM, PIN CONNECTED.

ENGINE

- CUMMINS QSB 6.7, TIER3, 185HP @ 2,200 RPM, 6-CYLINDER, WATER-COOLED, FUEL INJECTED DIESEL W/ AN AIR COOLED, TURBO CHARGER.

- 60-GALLON FUEL TANK

- ENGINE HEATER

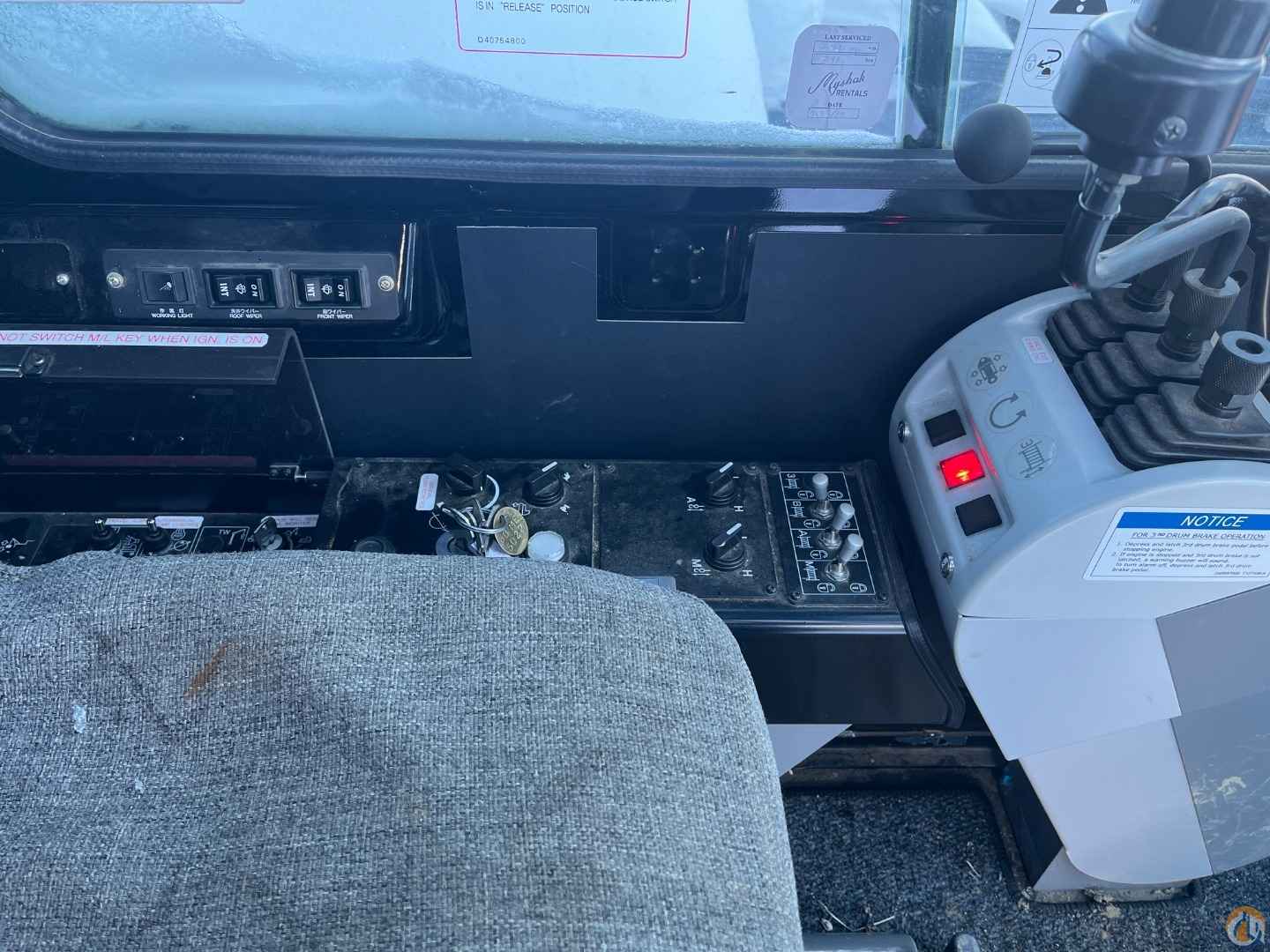

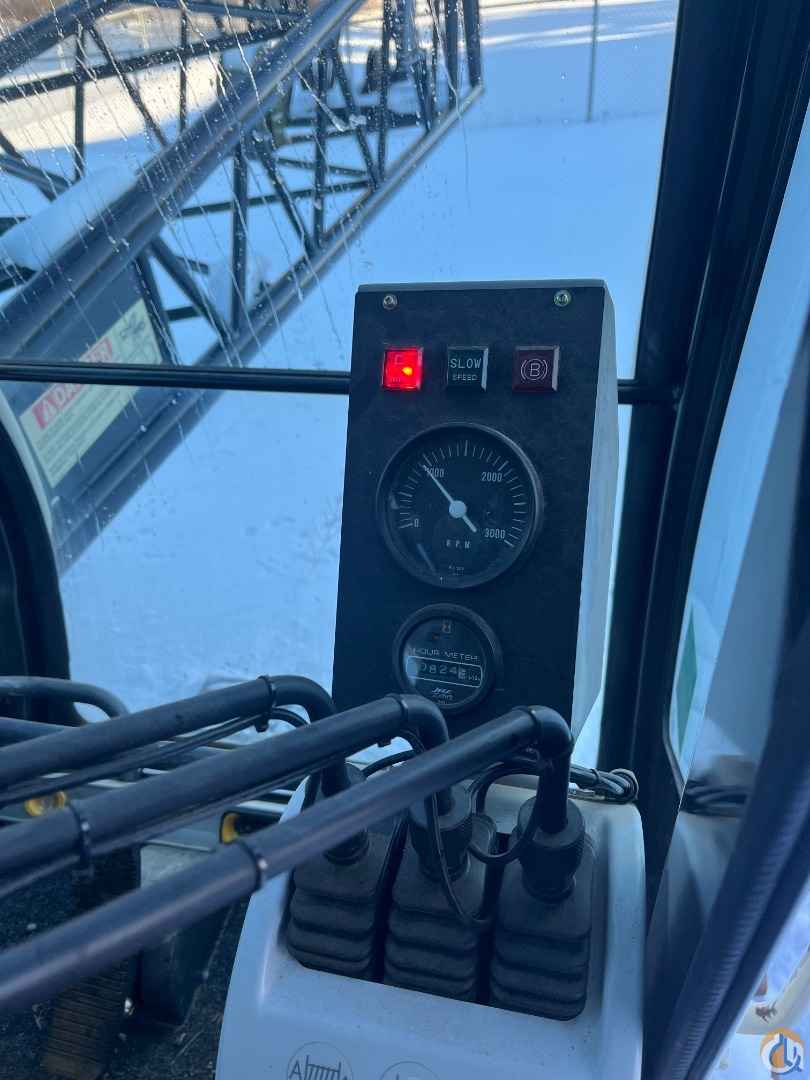

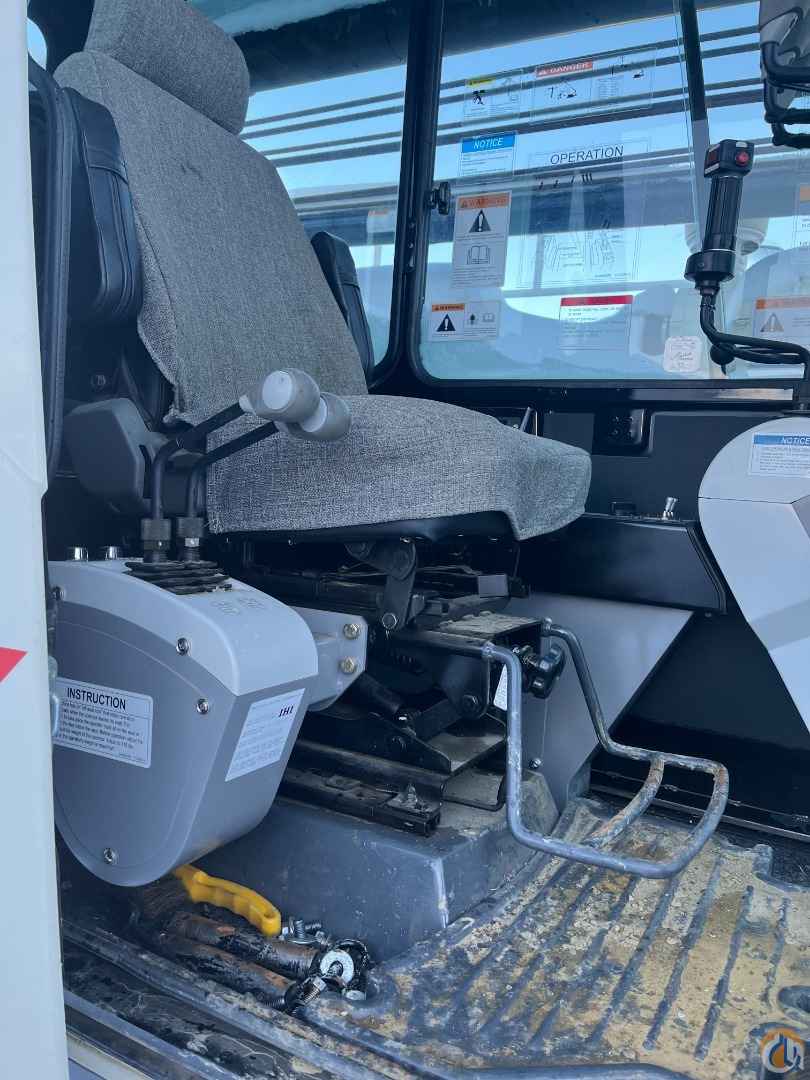

OPERATOR CAB, INCLUDES:

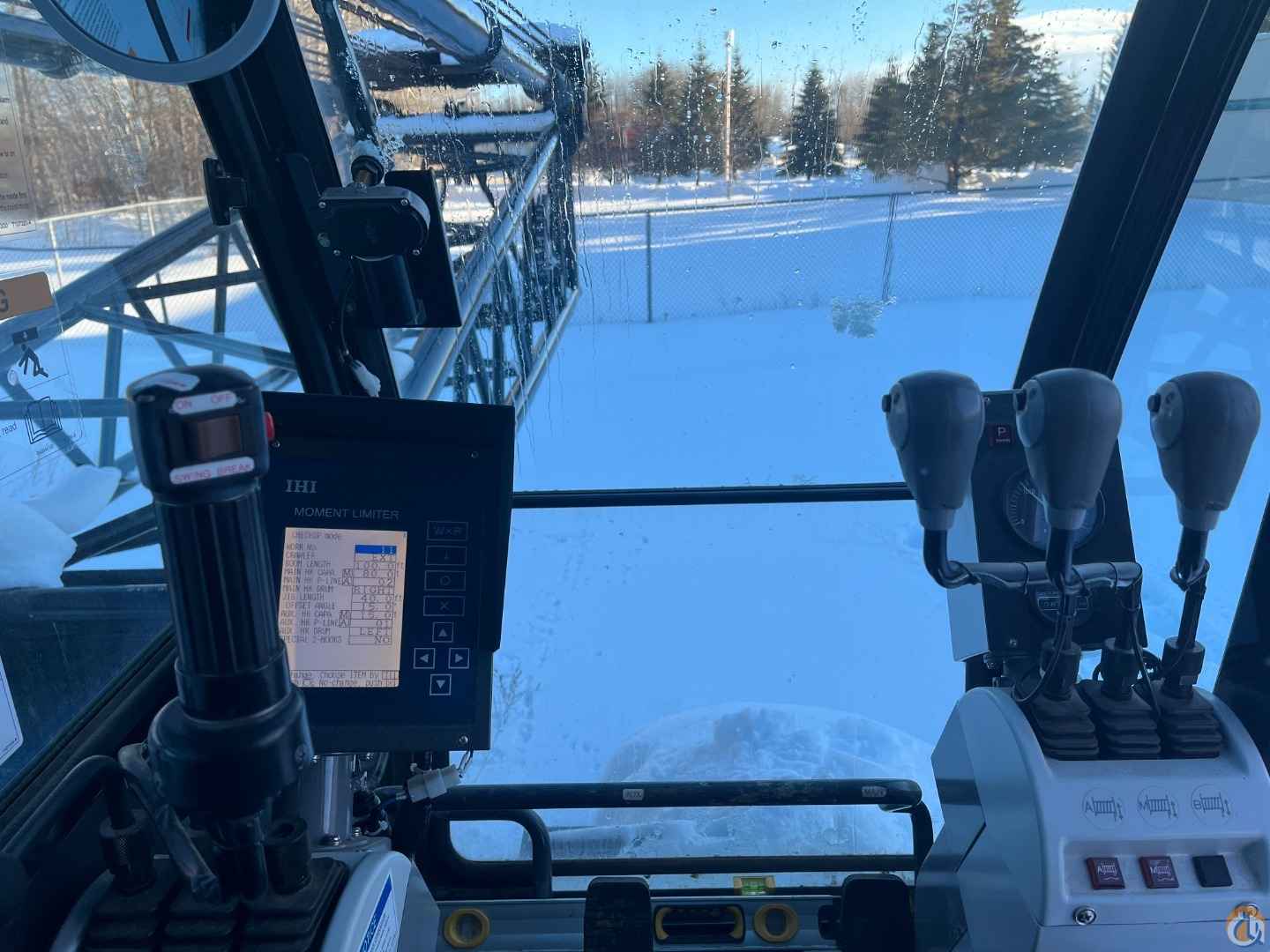

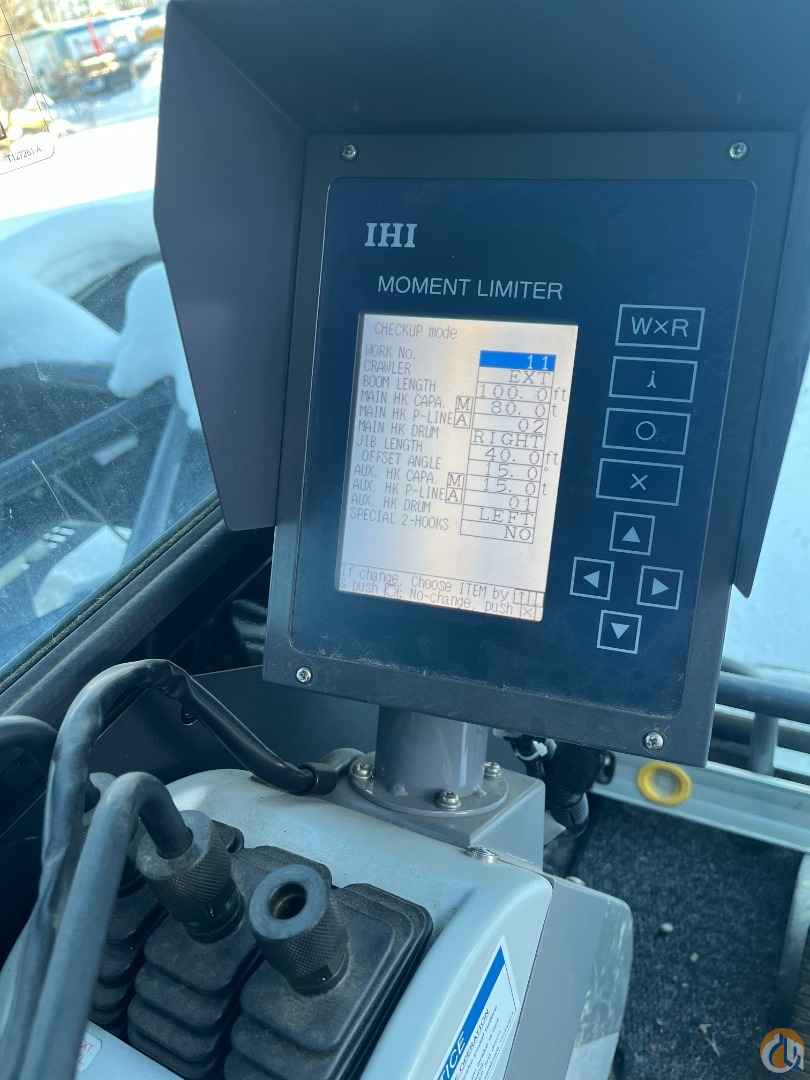

- LOAD MOMENT INDICATOR.

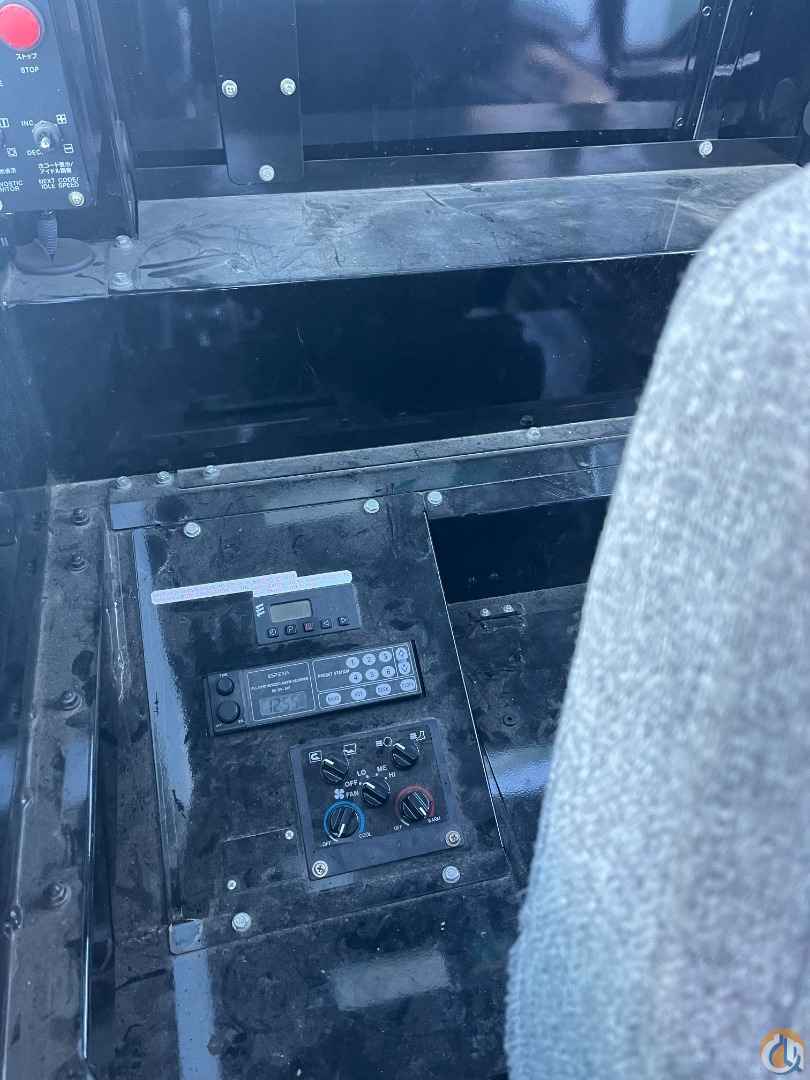

- HEATER & AC

HEAVY DUTY CAR BODY & CRAWLERS

- STEEL CAR BODY W/ SQUARE AXLES FOR THE CRAWLER’S SIDE FRAMES. PRECISION MACHINED TOP SUPPORTS ANTI-FRICTION SWING CIRCLE AND MULTIPLE PASS HYDRAULIC SWIVEL JOINT.

- CRAWLERS HAVE HIGH ALLOY STEEL TUMBLER YOKES AND RIGID FABRICATED STRUCTURES W/ SEALED ROLLERS.

- 36” CRAWLER SHOES.

- TRAVEL MECHANISM IS SET WITHIN SHOE WIDTH.

- SIDE FRAMES EXTENDED OR RETRACTED BY CYLINDERS INSIDE THE CAR BODY.

- TWO TRAVEL SPEED SETTINGS (0.8 / 1.24 MPH).

- 40% (22 DEGREE) GRADEABILITY.

POWERFUL, HIGH-SPEED HOIST SYSTEM

- IDENTICAL INLINE, INDEPENDENT MAIN AND AUXILIARY LOAD HOISTING DRUMS ARE GROOVED FOR 7/8” DIAMETER ROPE. LINE SPEED IS 530 FPM.

- EACH DRUM HAS POWER UP/DOWN AND FREEFALL. LOAD HOISTS ARE FURTHER CONTROLLABLE IN STEPLESS MODE.

- 3.3 RPM SWING SPEED.

HIGH-CAPACITY HYDRAULIC SYSTEM

- OPEN CIRCUIT SYSTEM HAS 2 VARIABLE DISPLACEMENT PISTON PUMPS W/ SYSTEM CAPACITY OF 116 GPM.

- 79 GALLON HYDRAULIC RESERVOIR C/W 10-MICRON FILTER.

- HYDRAULIC TANK HEATER

COUNTERWEIGHT, 3-PIECE REMOVABLE

- INSIDE CW = 16,000 LBS, OUTSIDE CW = 21,000 LBS & CENTER CW = 21,000 LBS

- HYDRAULIC CW REMOVAL SYSTEM IS STANDARD AND UTILIZES THE “A” FRAME & CRANE AUXILIARY DRUM TO MAKE THE HC 80 ONE OF THE MOST TRANSPORTABLE CRANES IN ITS CLASS.
