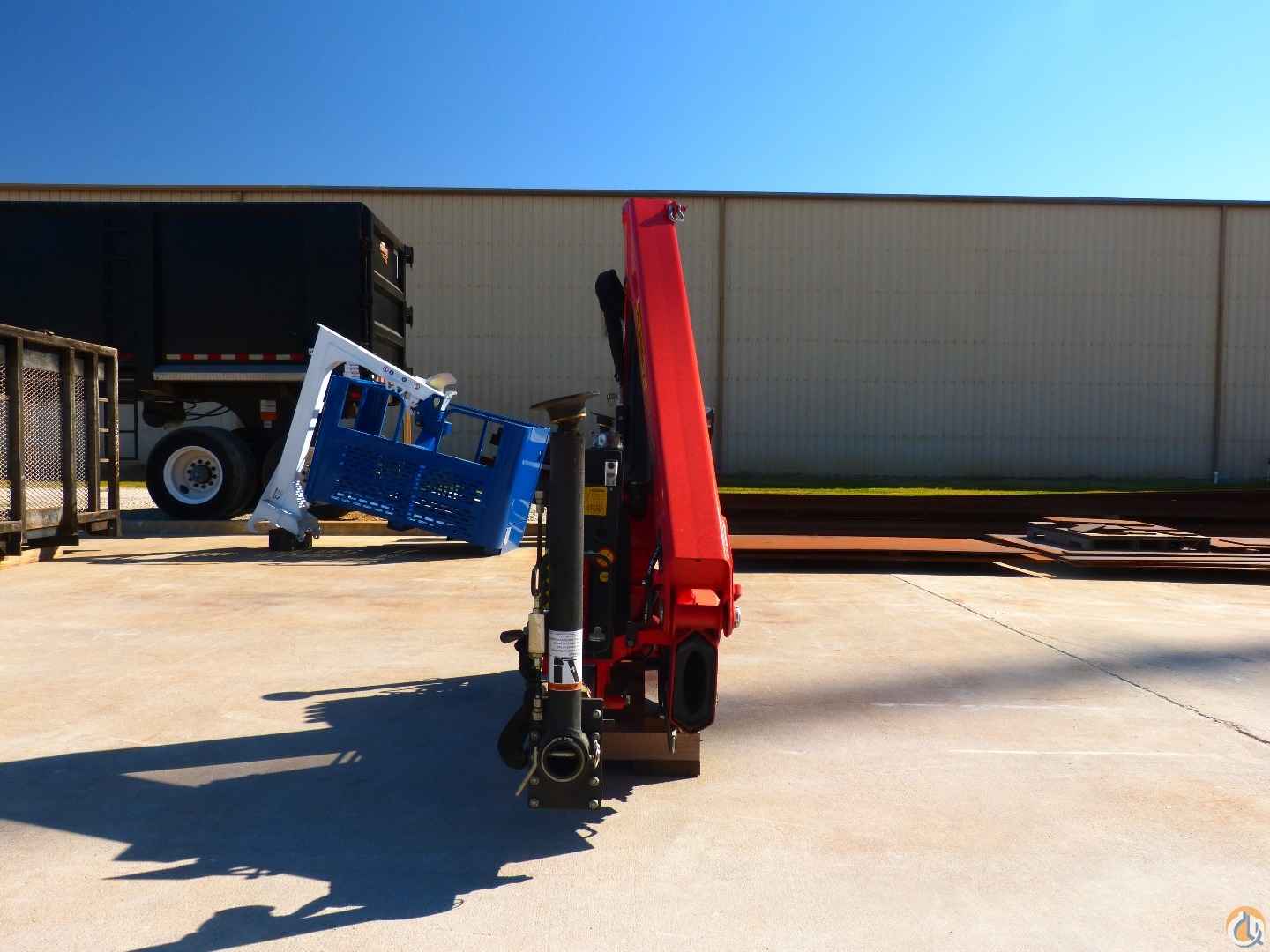

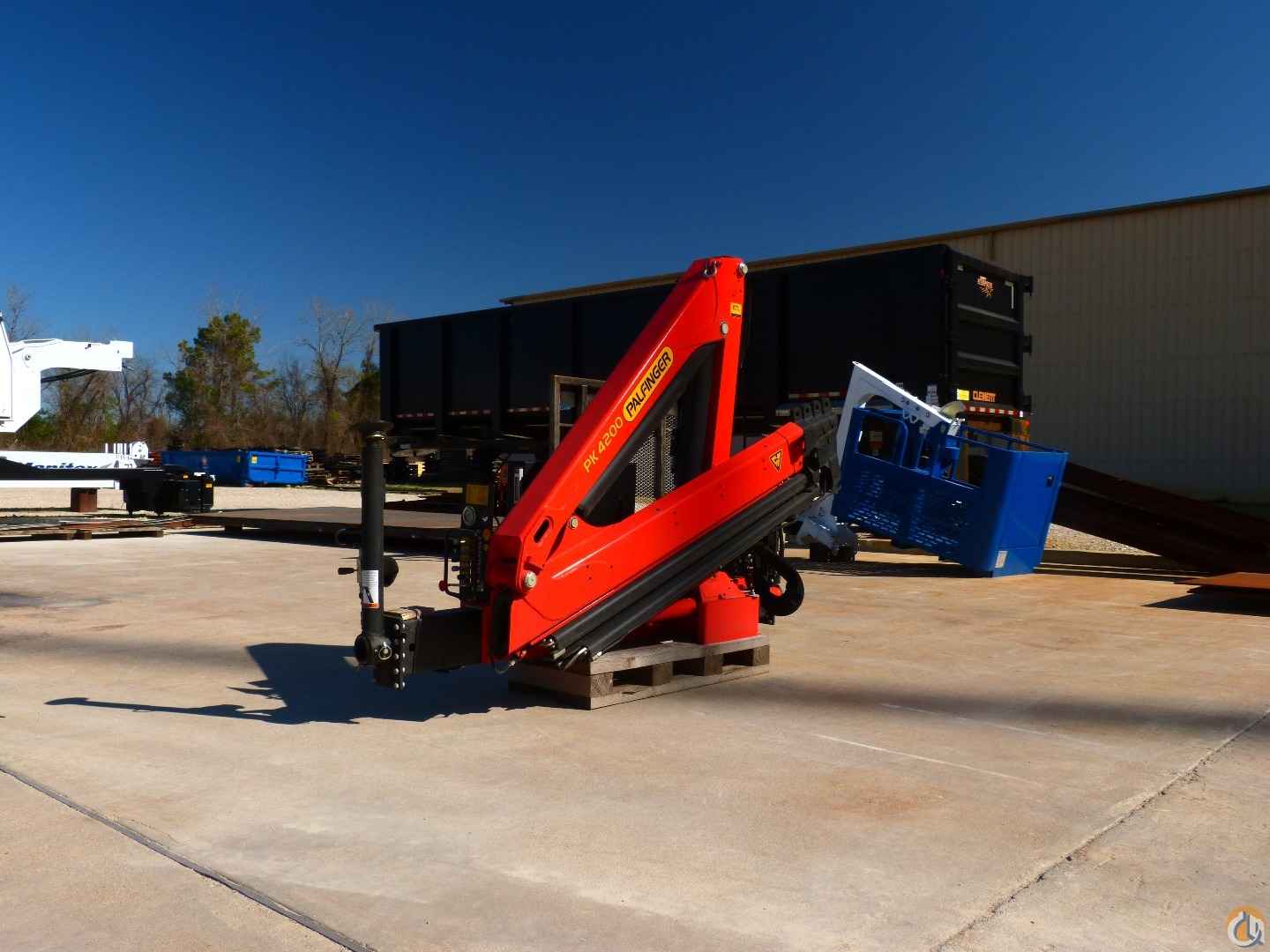

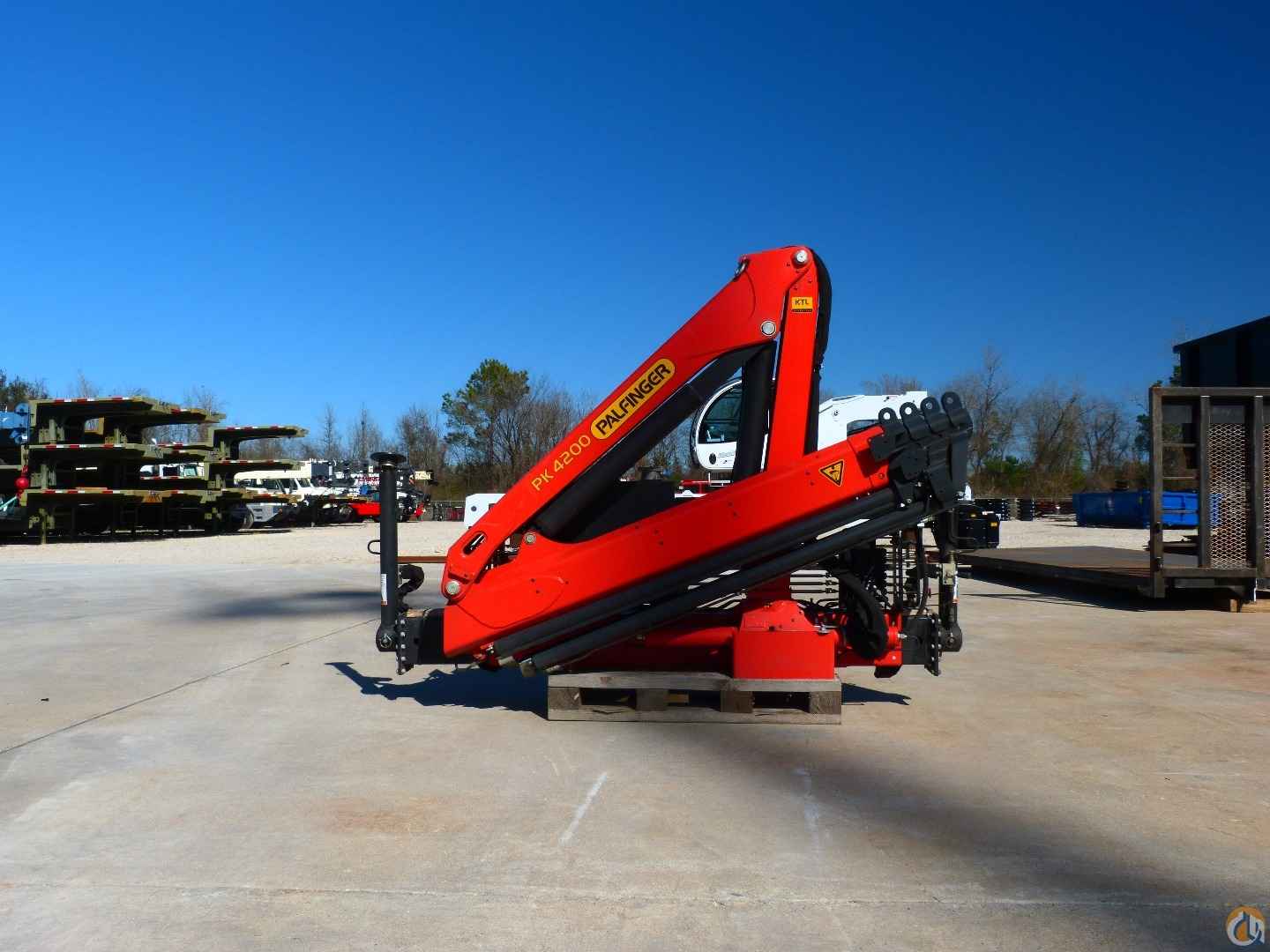

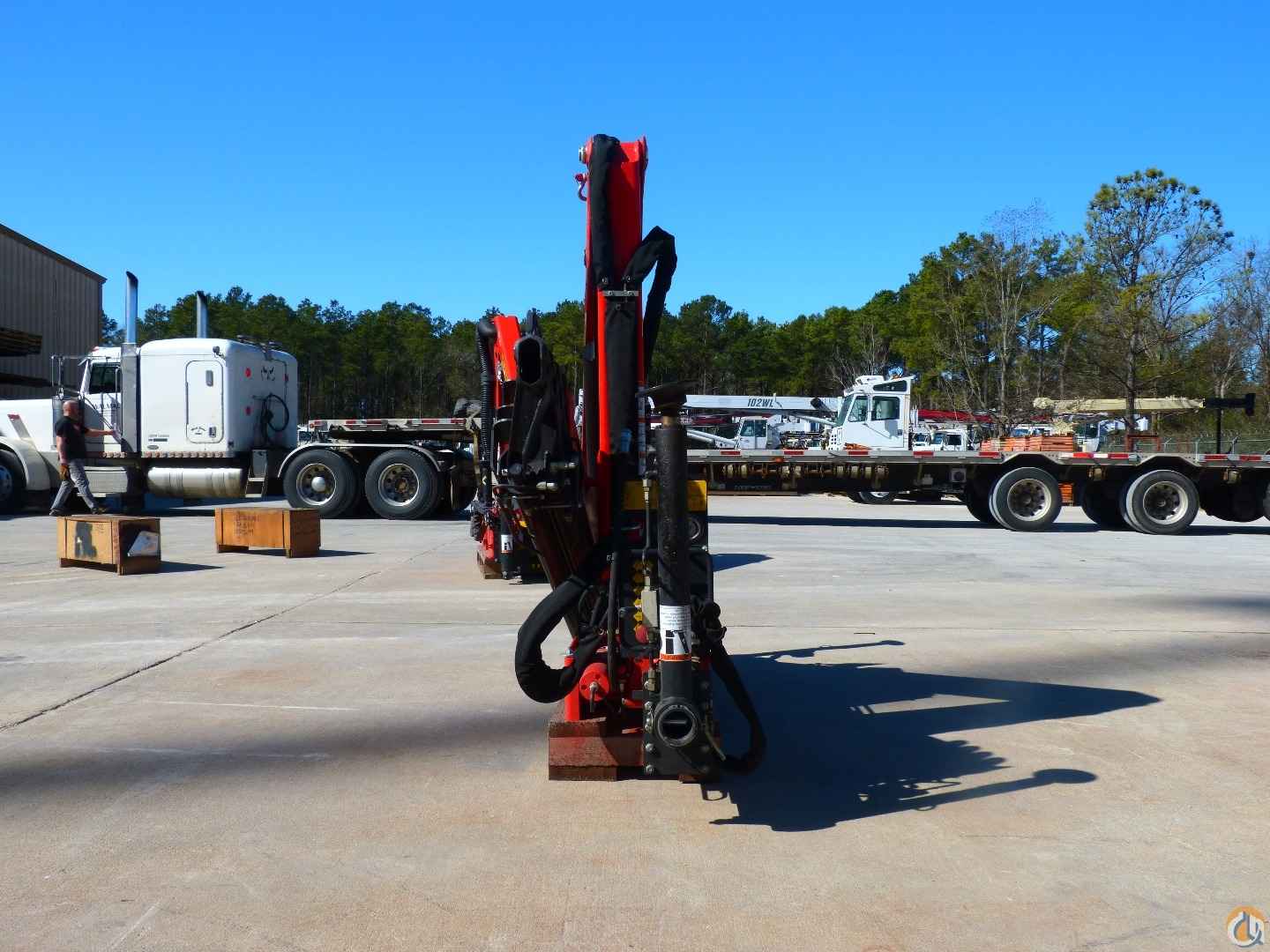

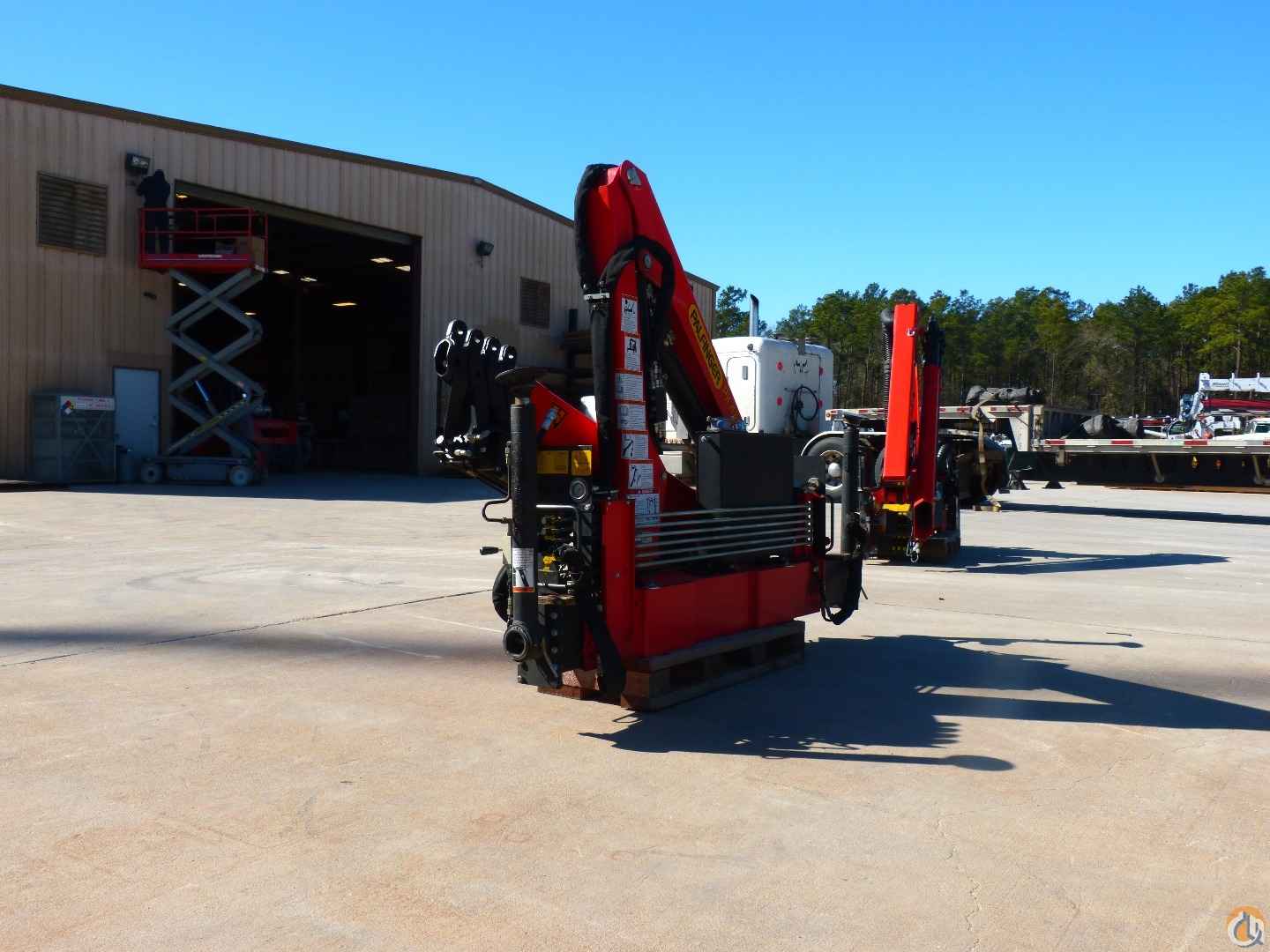

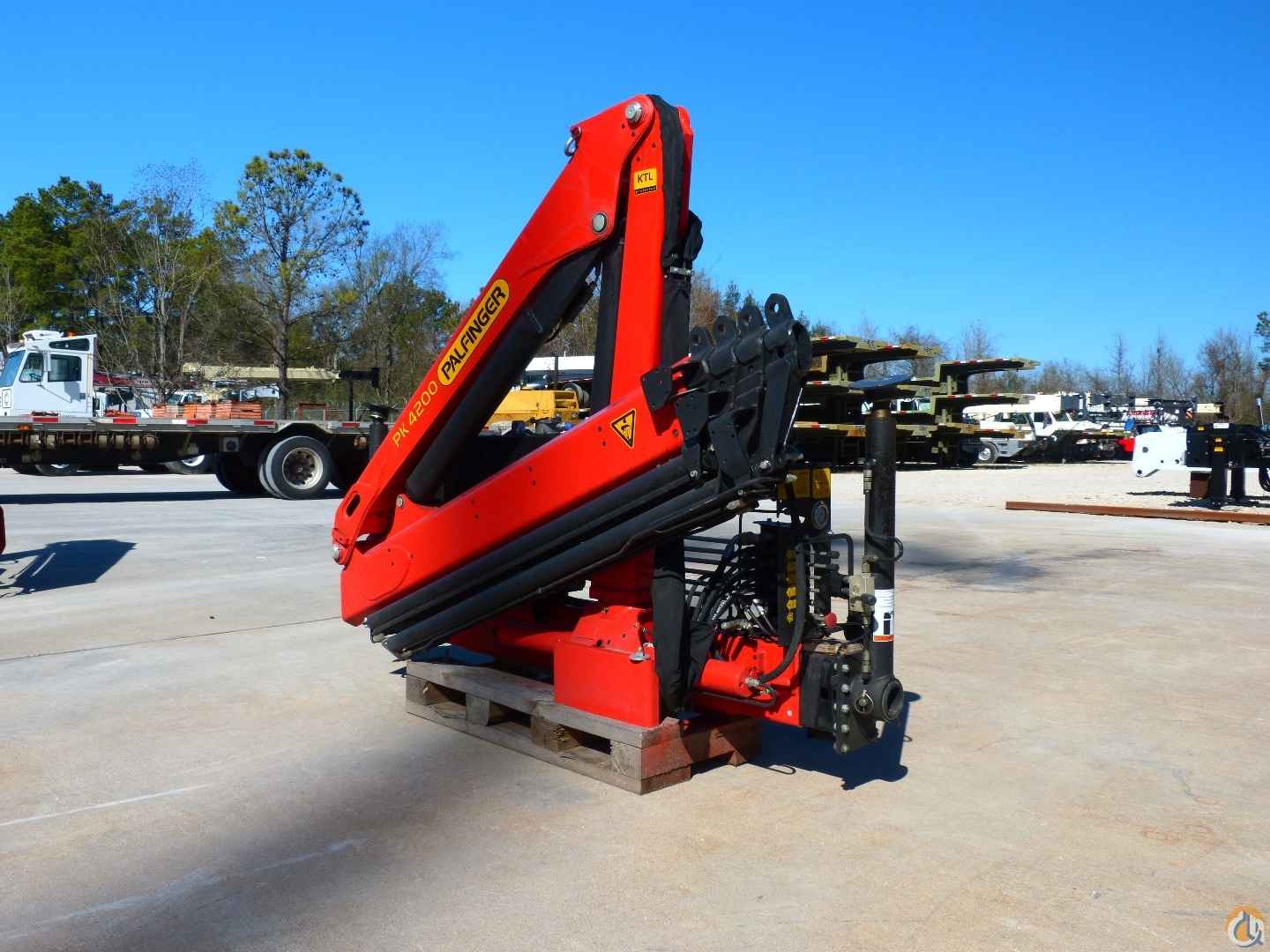

NEW PALFINGER PK4200 - BARE CRANE ONLY - NO INSTALLATION

STANDARD FEATURES

Maximum lifting moment 3.9 mt (28,220 ft-lbs).

Hydraulic outreach 16' 1" via 1-hydraulic extension with 370° rotation.

Controls on each side of the crane base.

Overload indicator at each operator stand via hydraulic pressure gauge.

Hydraulic emergency cut-off.

Load holding valves on slewing, inner, outer and extension boom cylinders.

Extension system with internal oil flow.

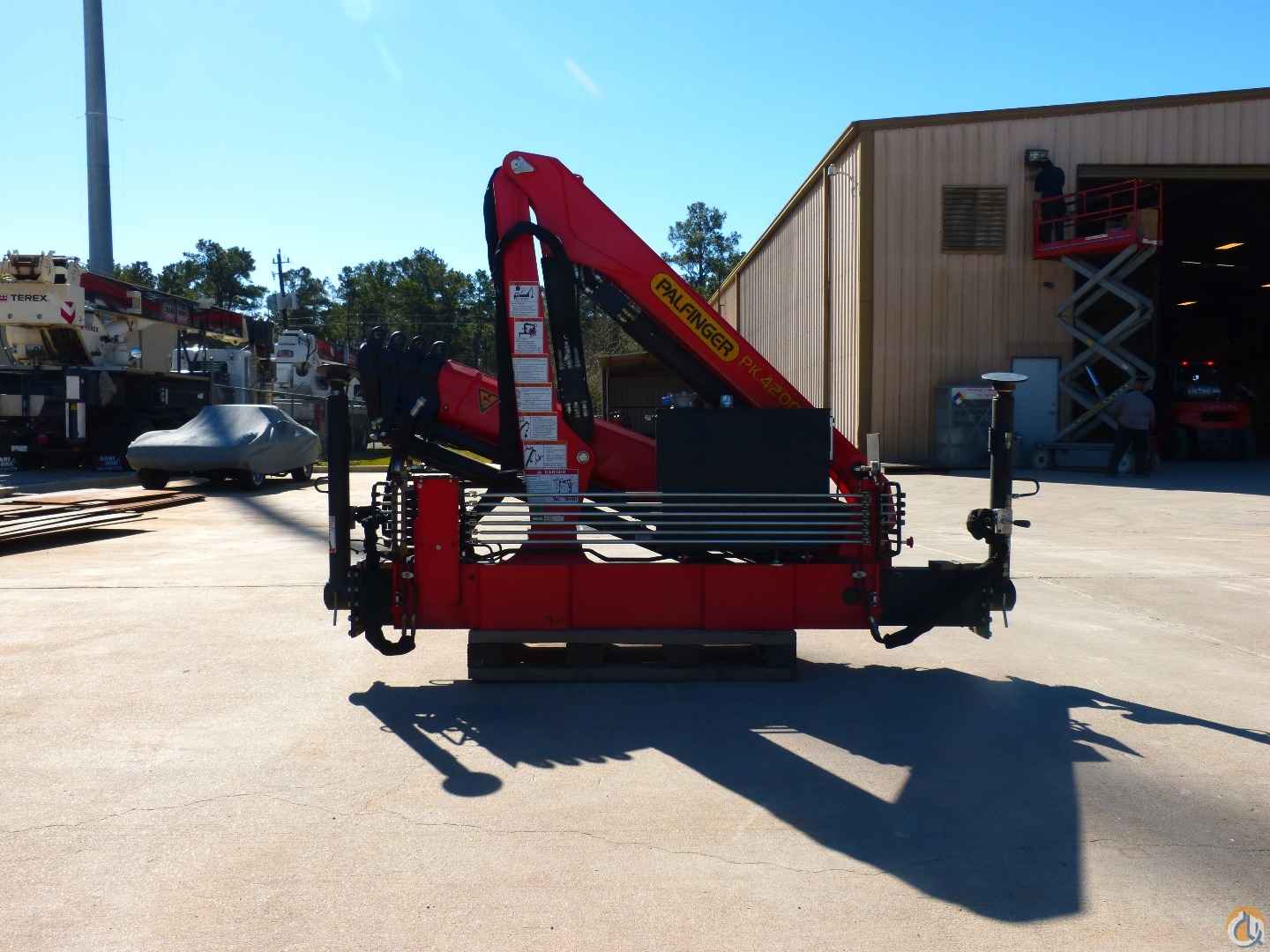

Manually extendable outriggers to 9' 6" (R1).

Fixed hydraulic stabilizer cylinders (STU07).

Bubble level at both outrigger control stations.

Hour meter with indication of service intervals (12 V power required).

2 metric ton (4,400 lbs) capacity load hook.

Oil tank 6.6 US gal. (25 l) with return filter installed at crane base.

INCLUDED ITEMS

PALFINGER PK 4200 High Performance Hydraulic Loader

4 section hydraulic boom extension ( B-Boom ) from 21’4” to 32' 2"

High pressure filter (EA1391A) with element, fittings, mounting bracket and hardware, - loose -.

Manually tiltable stabilizers. (STU06). Stowable in 60 degree position. ( 6.69" length)
