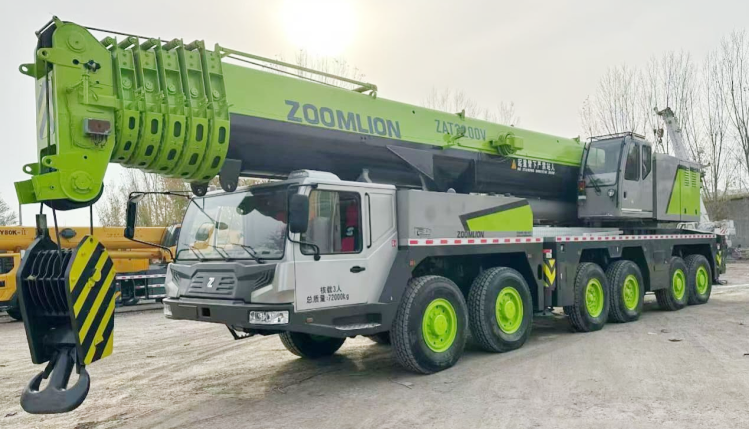

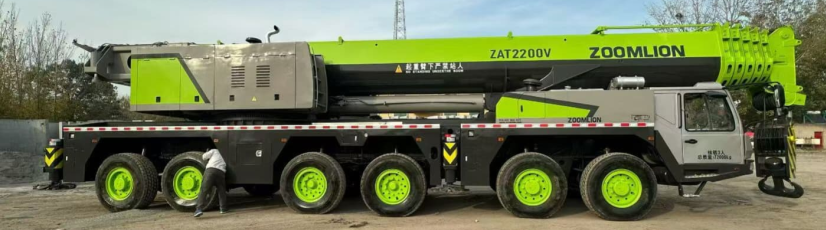

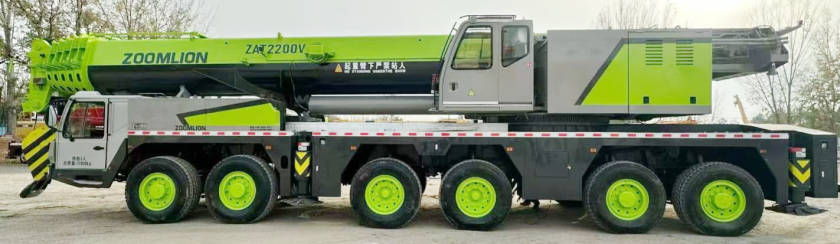

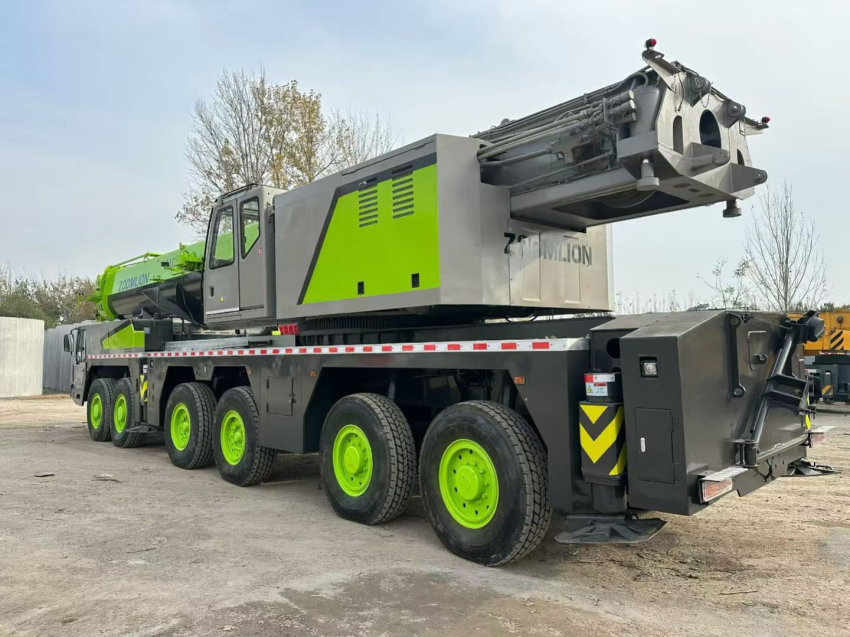

2013 Zoomlion QAY220, 220MT, Hydraulic Truck Crane; CranesList ID: 1069.

• 13.8m - 61m Six Section Full Power Boom with Rooster Sheave,
• Electro-hydraulic proportional controlled systems,
• Jib - SUBJECT TO FINAL CONFIRMATION,
• Mercedes-Benz Diesel Engine UP,
• Main Winch with 23mm Wire Rope,
• This crane is equipped with an automatic load moment limiter whose display and warning
  devices are all fitted in the operator’s cab.
  If the actual load reaches 90% of the rated one, the warning light lights up and buzzer sends
  out slow acoustic warning.
  If the actual load approaches 100% of the rated one, the warning light lights up, buzzer
  sends out fast acoustic warning and all dangerous crane movements are switched off.
  The basic parameters, such as moment ratio, boom angle, boom length, working radius,
  actual lifting capacity, rated lifting capacity and maximum lifting height, will be displayed on
  the LCD.
  This crane is also equipped with the following safety devices to ensure the crane safety:
  a) Boom angle indicator
  b) Hoisting limit switch
  c) Hook latch
  d) Lowering limit switch
  e) Two-way hydraulic lock
  f) Balance valve,
• Hook Block,
• Counterweights Weight variants: 11 t, 22 t, 33 t, 43 t, 60 t, 75 t - SUBJECT TO FINAL CONFIRMATION,
• Streamlined Operator's Cab with tinted panes all around, wiper and washer are equipped on both windshield and roof window. Steel construction, can be tilted backwards for 20° to broaden the operator’s field of vision. The cab is wide in front section and narrow in rear section, providing spacious operating space. Armrest integrated with control levers, and control console designed ergonomically.
  It can b e tilted back 20° for increased operator visibility during operation.
  Heater and air conditioner contribute to comfortable circumstance. Two joysticks can provide the crane with smooth simultaneous movements among “Spool up / reel off main winch / auxiliary winch”, “Derrick”, “Slew” and “Telescope”, which greatly improves the working efficiency. The joysticks are of the characteristics, such aseasy-controlled, flexible, reliable and stepless speed regulated etc,
• 9.84' Wide Zoomlion 6-axle (4 axles driven and 5 axles steered) Carrier,
• Mercedes-Benz Diesel Engine,
• 16-speed automatic control Transmission with retarder and PTO  - SUBJECT TO FINAL CONFIRMATION,
• Front and Rear Tires: 1400-R25 - SUBJECT TO FINAL CONFIRMATION,
• Delivery to Shanghai port included in the price,
• Seller Reports the crane is in good working condition, and all hydraulic and electrical functions are operating properly,

http://www.CranesList.com,

LOCATED IN CHINA WITH DELIVERY TO SHANGHAI PORT!
