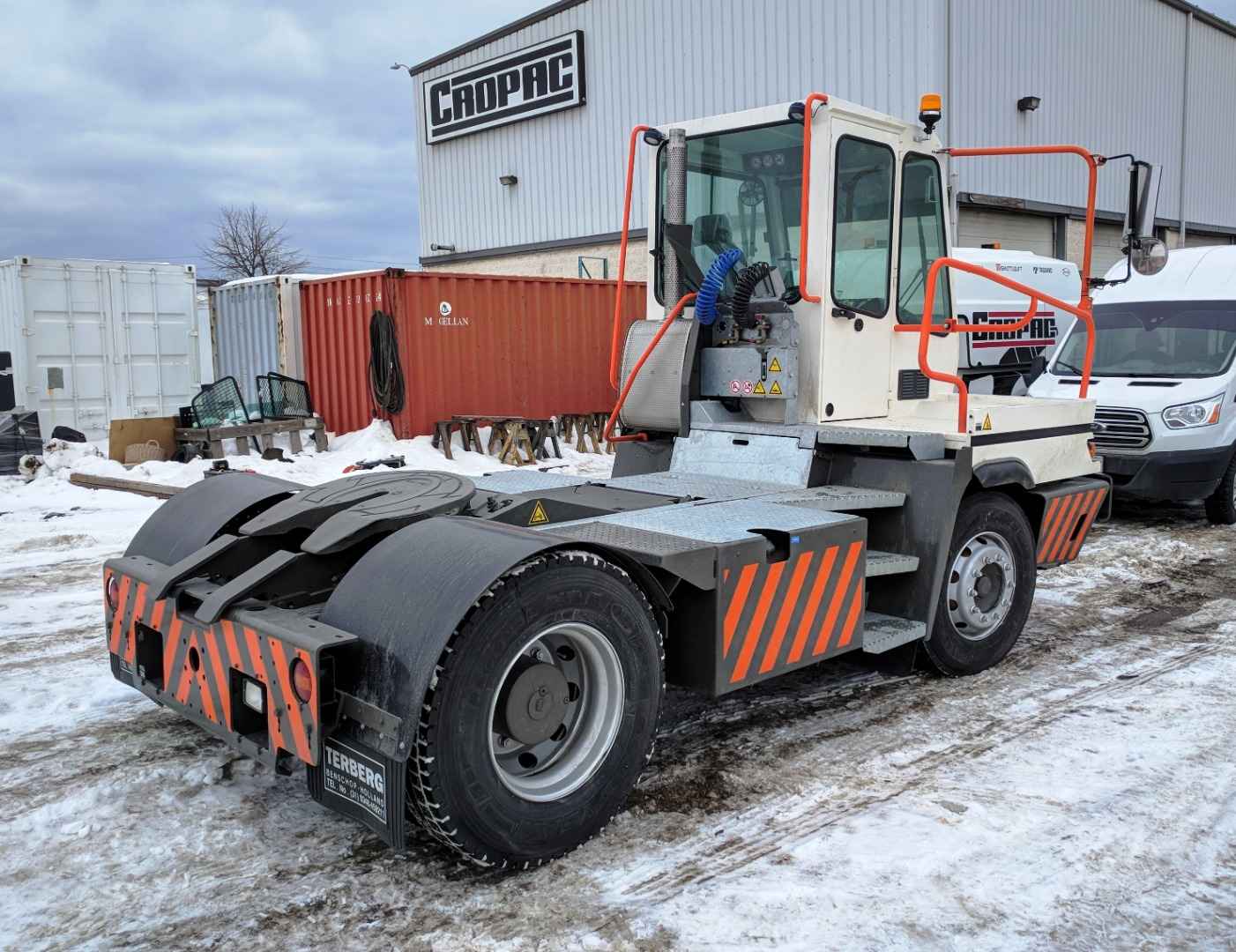

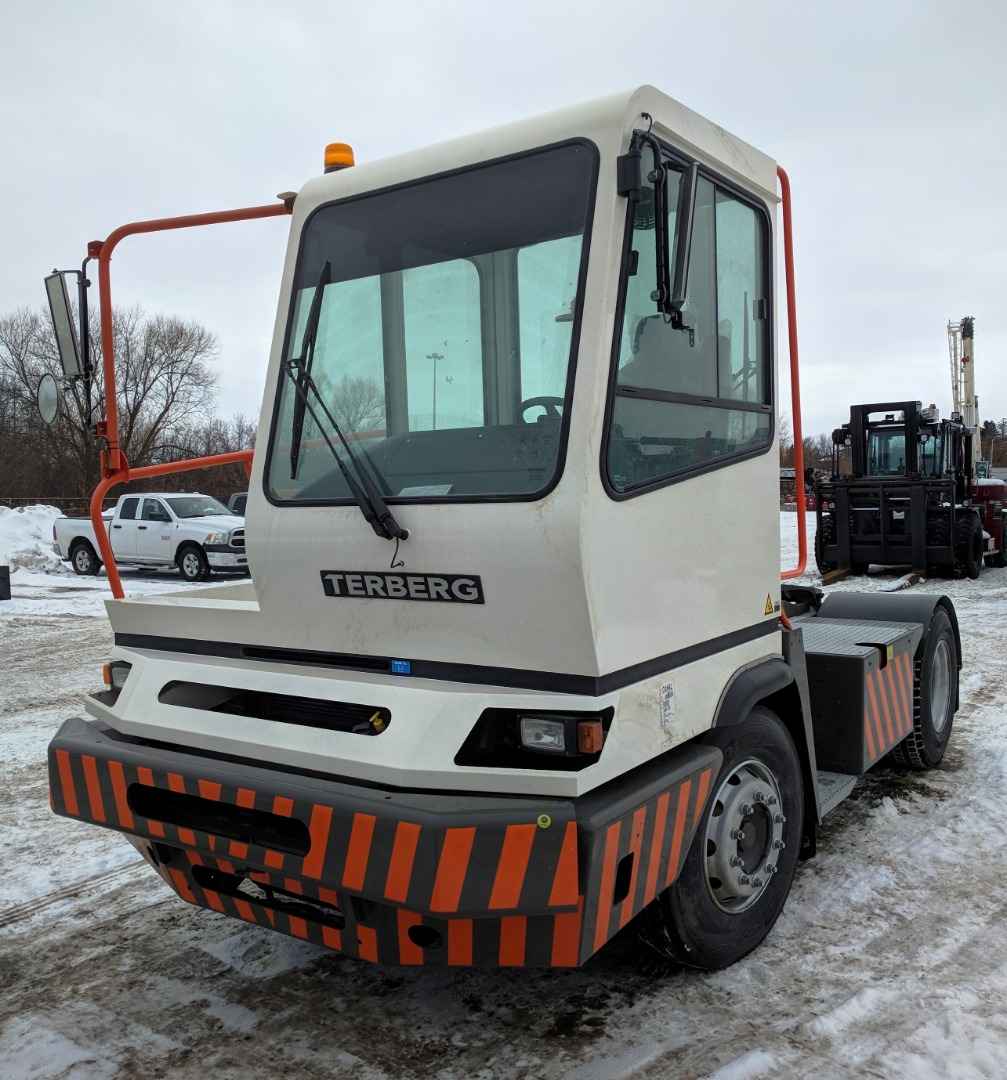

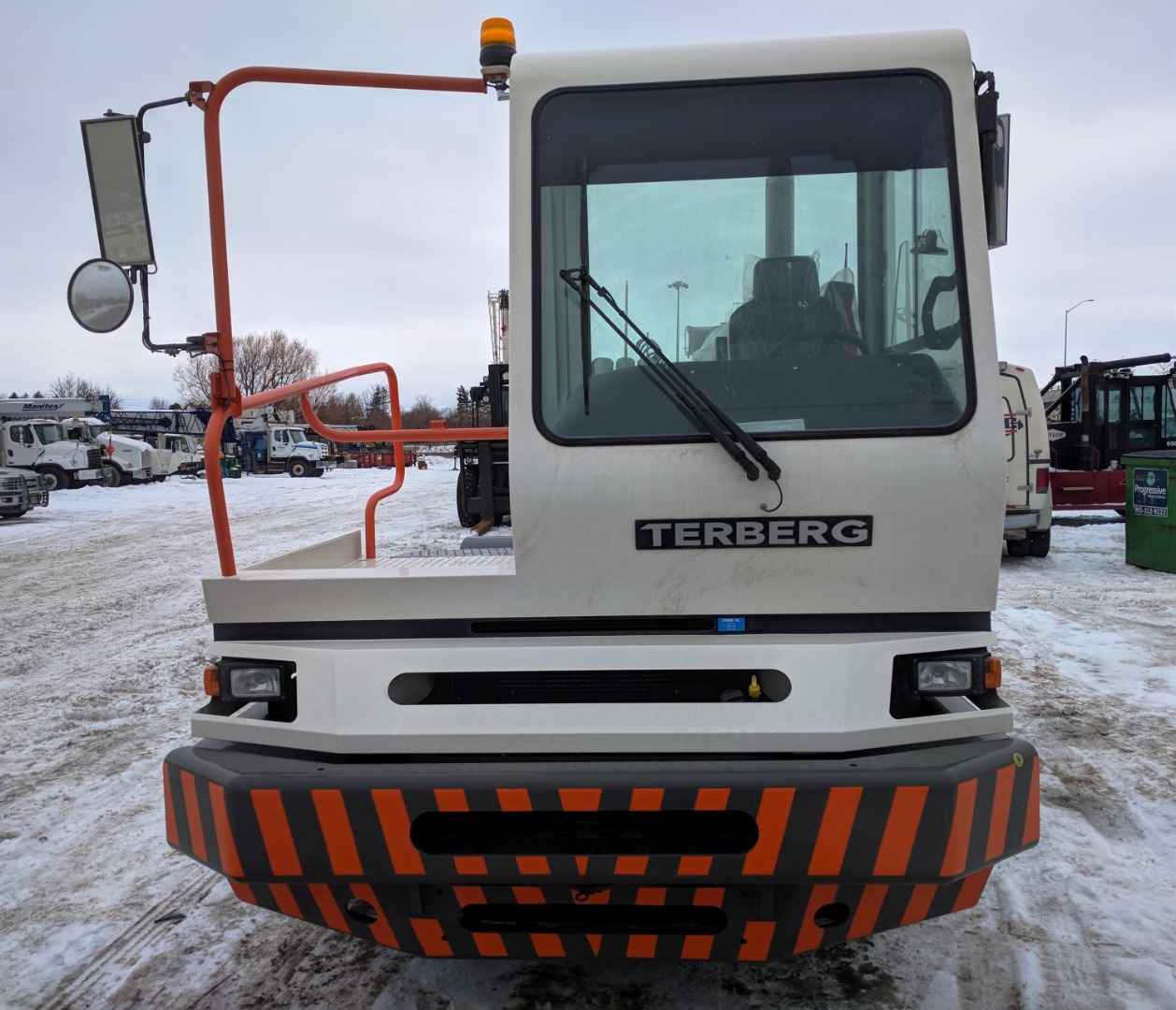

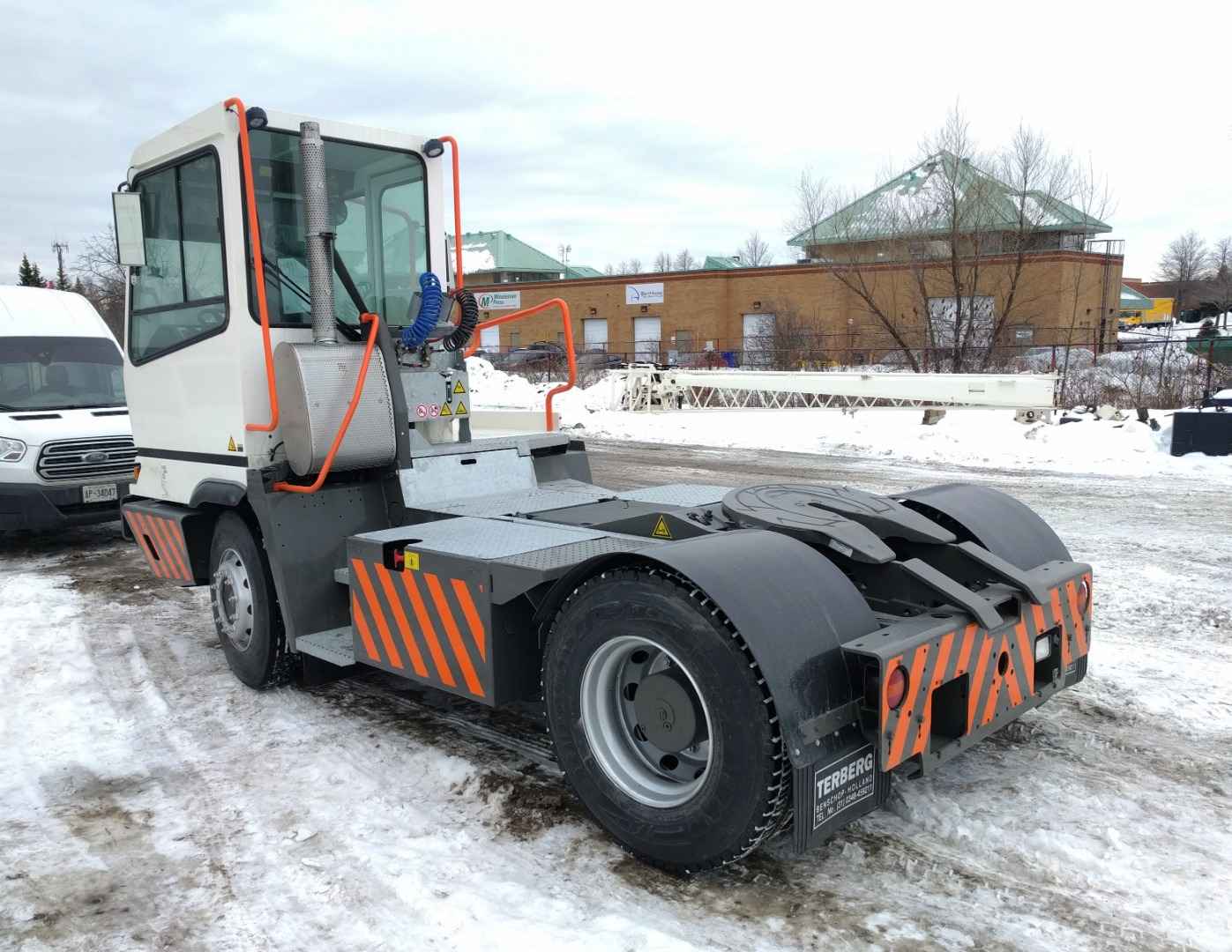

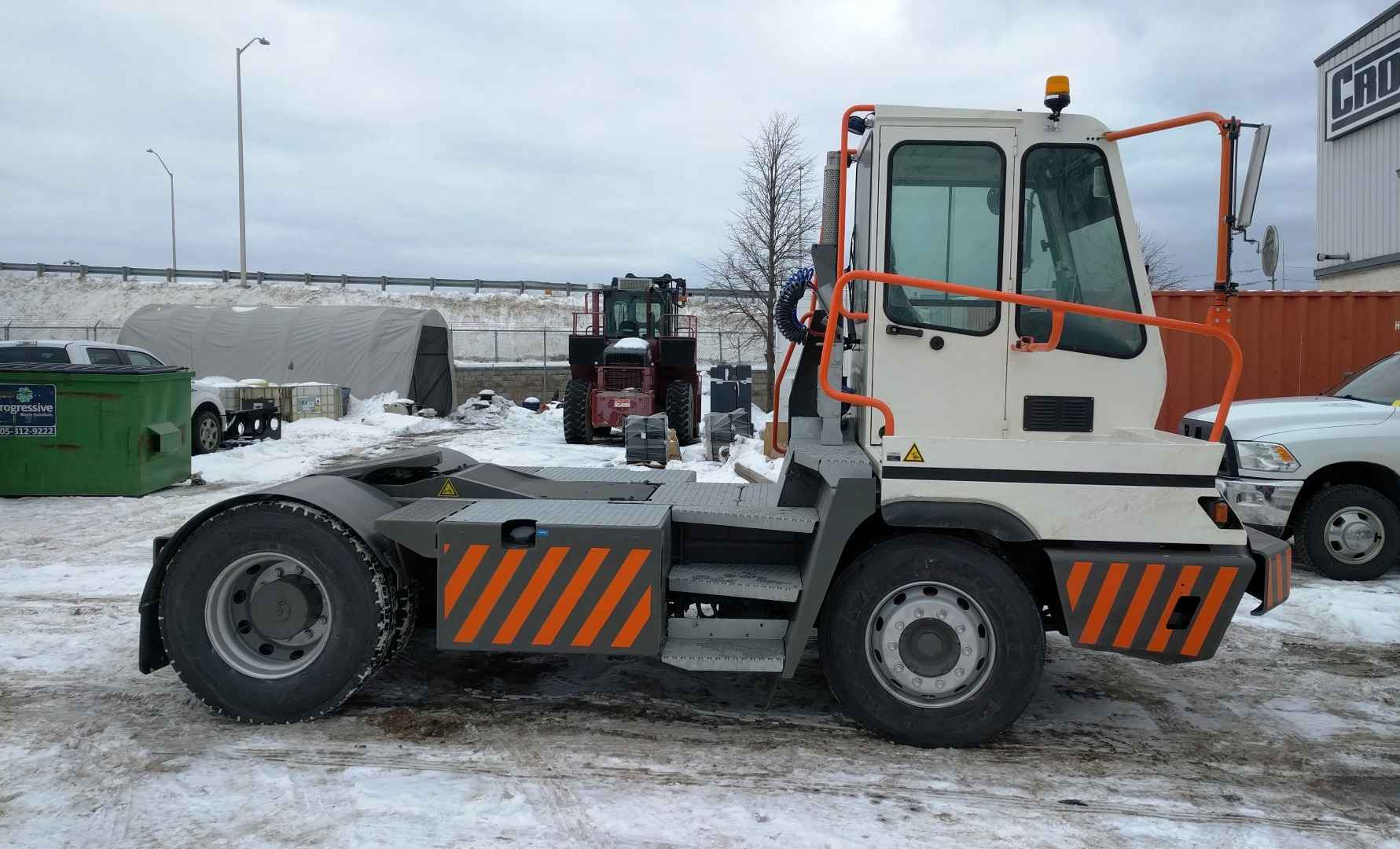

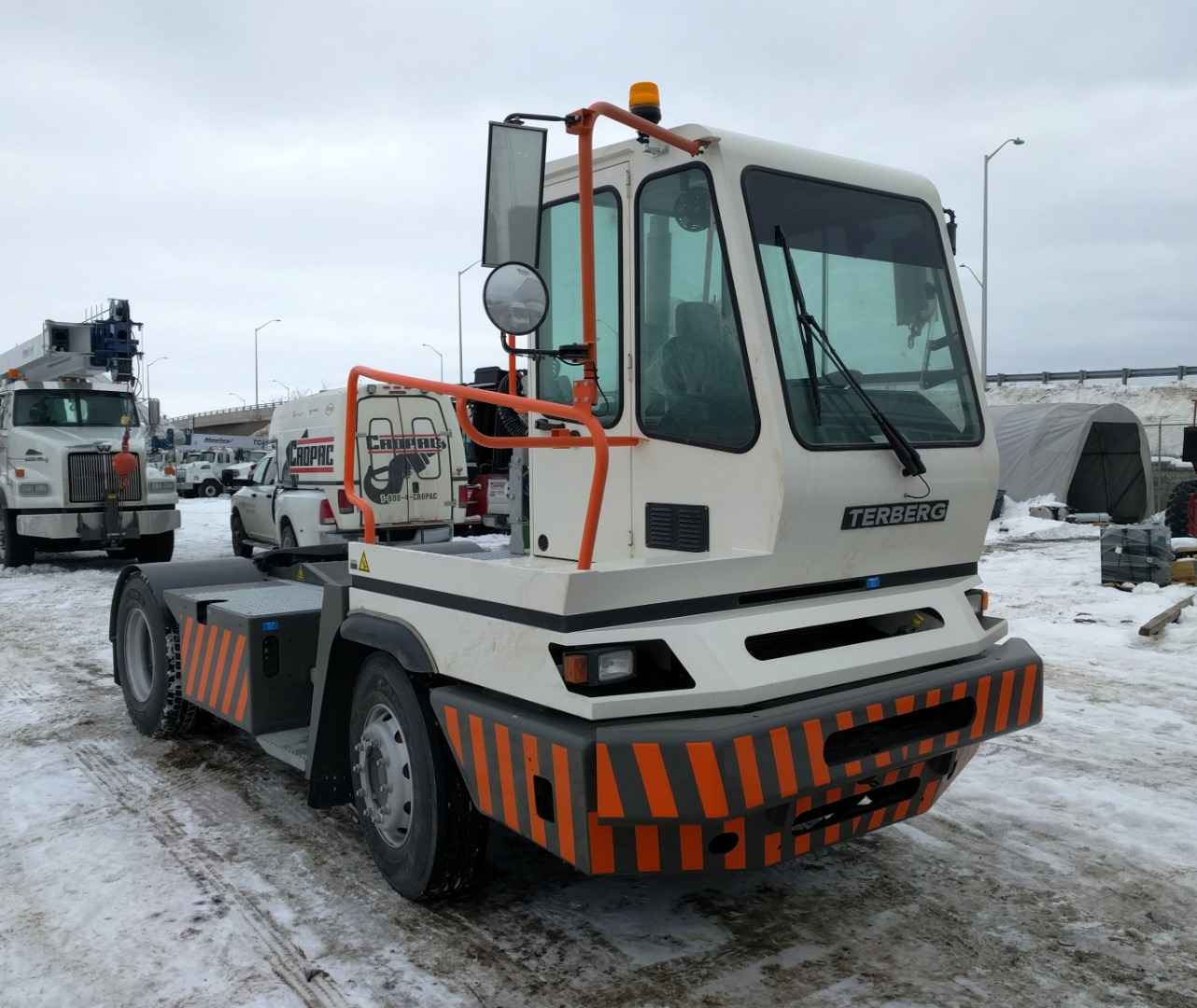

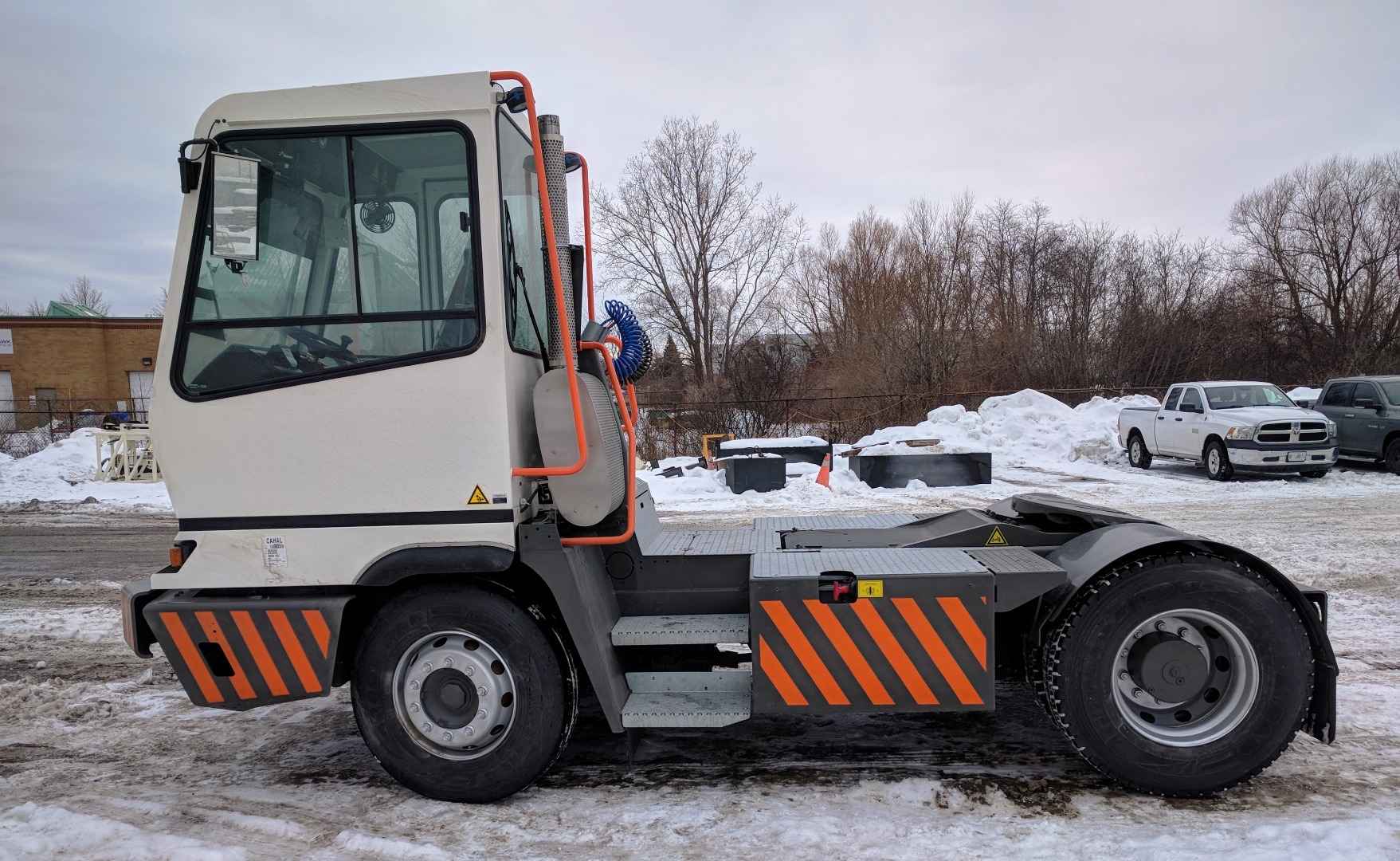

2019 Terberg YT222 Terminal Tractor / Yard Spotter Equipment for Rent

• Engine : Cummins QSB 6.7 – 220 hp (Tier 3)
• Cabin : Left hand drive with fixed forward seat and inboard door
• Transmission : Allison 3000 (5 forward + 1 reverse)
• Wheel base : 3.100 mm · Front axle : Volvo FA 8.0 (11 metric ton @ 20 km/h)
• Rear axle : Kessler (38 metric ton @ 20 km/h) ratio 12.73 : 1
• Tyres : 11R22,5 (6x)

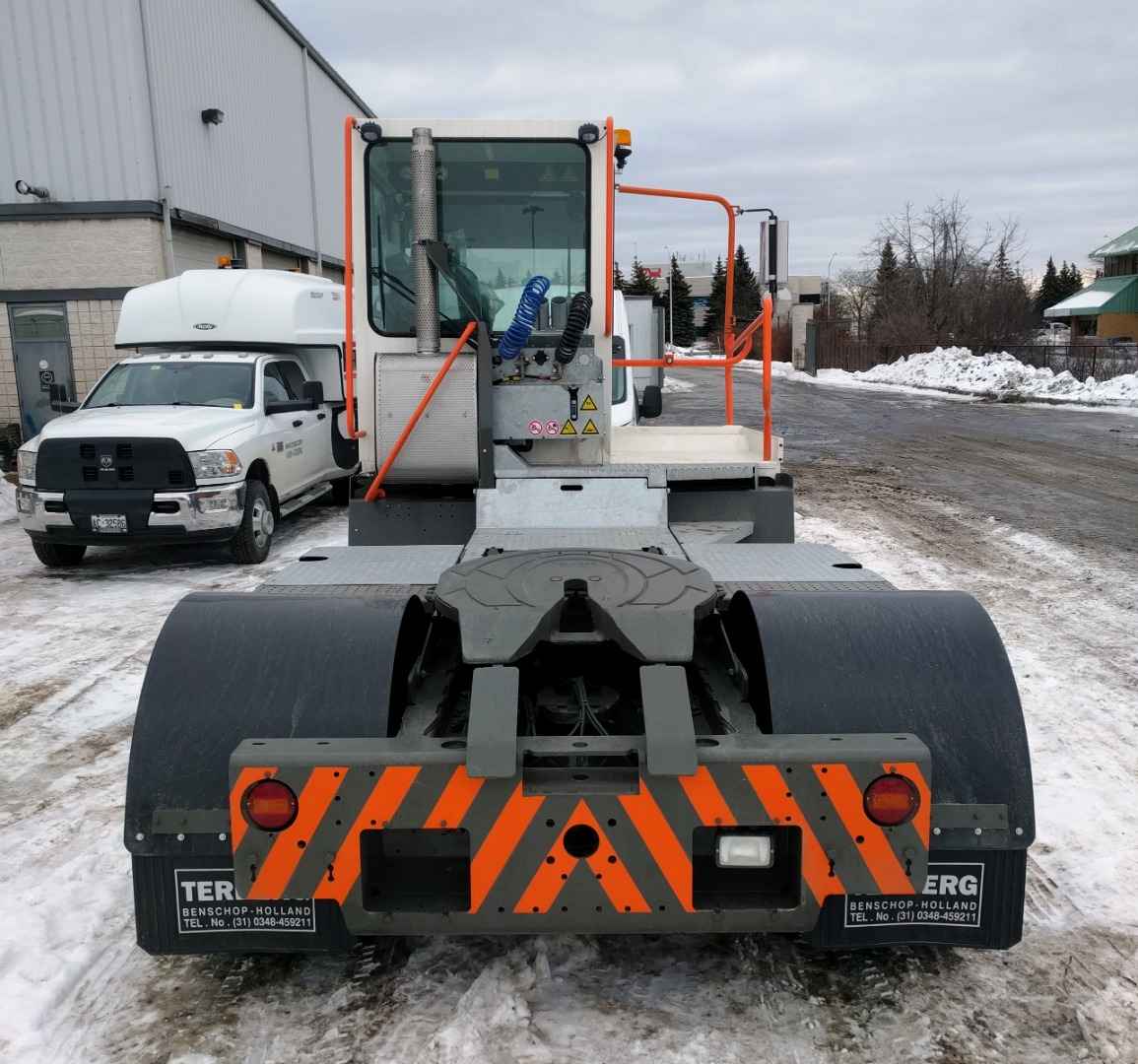

• 5th wheel : 2”, SAF/Holland 34 metric ton lift capacity

Options:

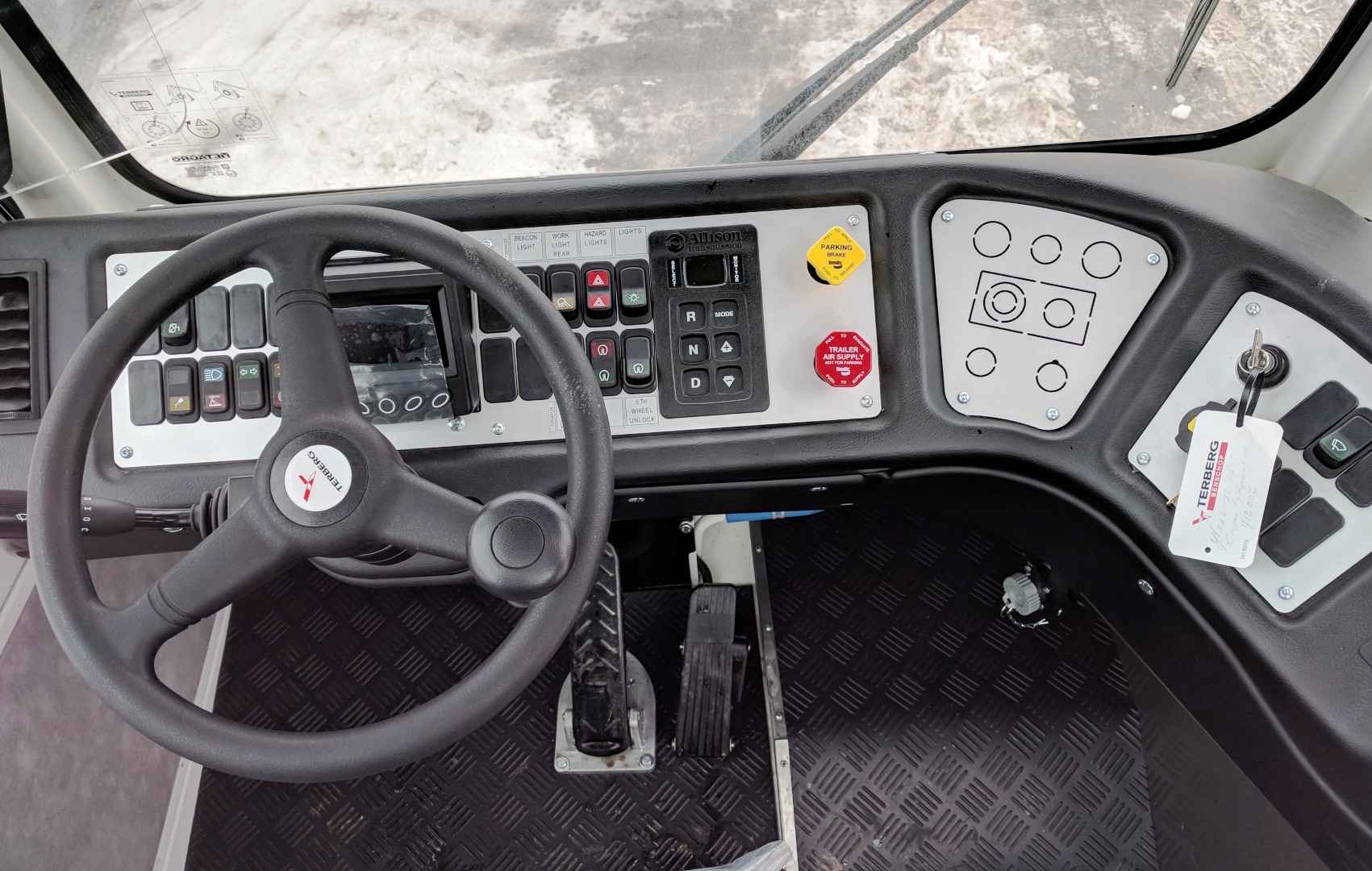

Cabin

• Sun strip 300 mm (11.8”) wide on front window (horizontal)
• Intermittent wiper front
• Wiper rear
• Wiper-washers front and rear
• Air suspended cabin
• Electric/hydraulic cabin tilt + manual pump

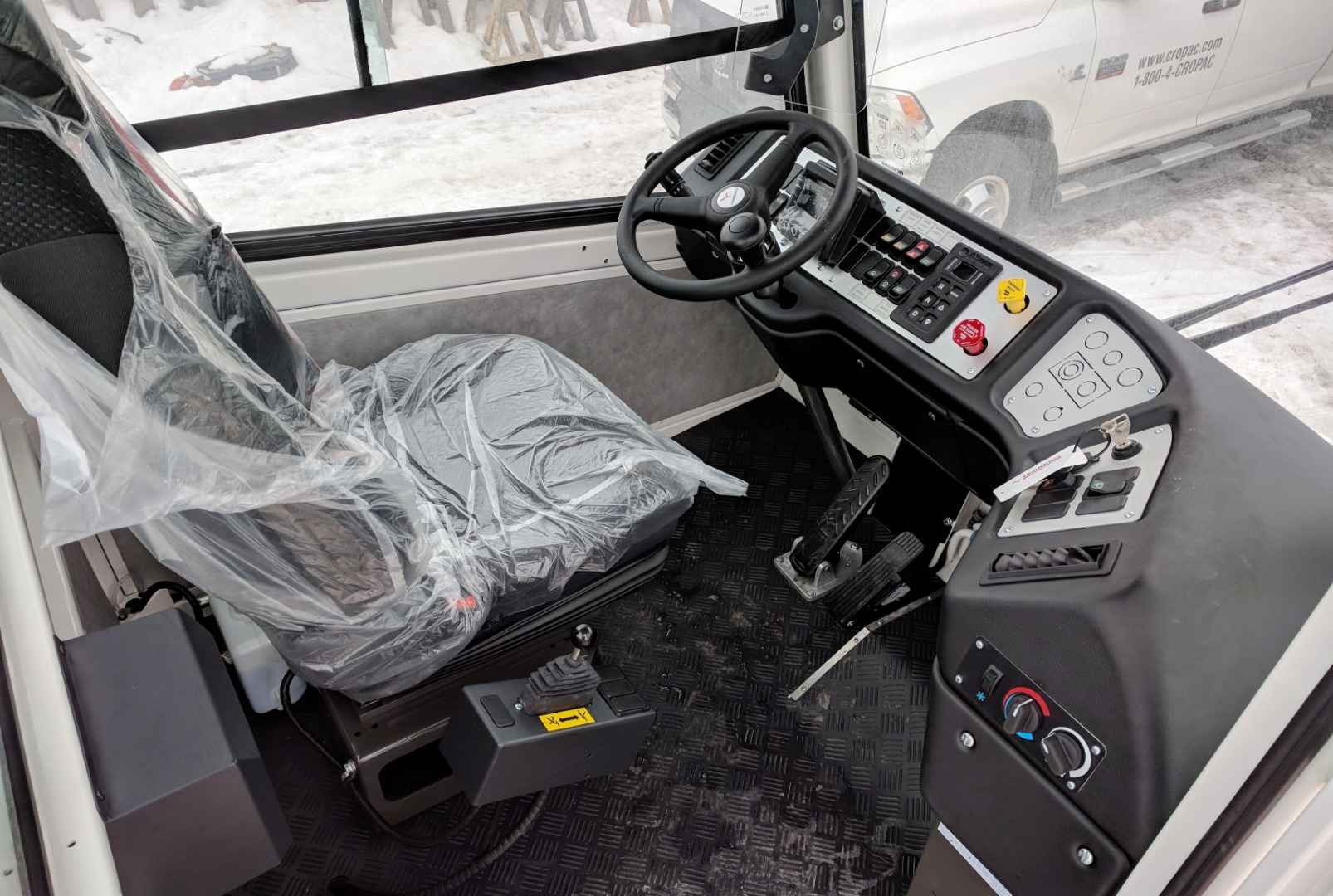

• Seat with 3 point integrated seat belt (ISRI 6860/870 luxe)
• Red seat belt
• 2 outside mirrors, west coast style heated
• 2 outside wide angle (one either side)
• Two additional fans in cabin
• Arm rest on seat
• Hydraulic cab tilt lock
• Mud flaps above front wheels
• Clipboard
• Fluorescent light in cabin (instead of standard light)
• Air conditioning
• Lights wired through ignition
• 2nd hour metre near tank

Engine

• Cyclone filter on air filter
• Speedlimter set to approx. 37 km/h

Electric Installation

• Step-lights
• Trailer electric connection 12V
• High coolant temp warning
• Low oil pressure warning
• Air-horn instead of normal horn
• Reverse buzzer/bleeper 90 dBA 3
• Warning beacon LED type
• 2 work light in rear of cabin roof LED
• 1 Reversing light in rear bumper LED
• 24 V to 12 V converter (11 Amp max)
• 12 V auxiliary connection socket in cabin
• ABS signal on pin 7 of trailer connection
• Main lights connection to trailer upgraded to 25 Amp.

Pneumatic

• Push button trailer brake valve
• Push button hand brake valve
• Automatic palm coupling
• Colour coded airlines (yellow and Blue)
• Extra 30 liter airtank in chassis
• Air buckets for airhoses

Front axle

• Mud-flaps anti-spray front-axle

Rear- axle

• Mud-flaps anti-spray rear axle
• Plastic mudguards over rear axle

Chassis

• Wheelbase 3.100 mm (122”) increased driver comfort
• Lift capacity 34 T (74,800 lbs) @ 250 bar (approx. 3,625 psi)
• Chassis piece between lifting frame and tanks plating filled in with antiskid plates
• Sliding plates to 5th wheel
• Additional bumper piece

Hydraulic

• Lift height limiter (adjustable)

Paint system

• Handrails in high visibility colour (yellow or orange)
• Cab White RAL 9010
• Chassis Grey RAL 7022
• Rims Silber color
• Reflecting tape on side of steps
• Reflecting stripes all round
